Electric Sweeper Tricycle

JZ Electric Engineering Vehicles on the construction site has the following characteristics: heavy load, scientific design, convenience and flexibility.

Small size and flexible movement of Electric Sweeper: The JZ Electric Engineering Vehicles are reasonably designed, compact and flexible, and could be delivered to every place and every corner, so it could easily cope with various occasions.

Scientific design saves time and effort of Electric Sweeper: the load capacity of the JZ Electric Engineering Vehicles are three times that of the ordinary man-powered dump truck, and the efficiency is increased by more than 50%, greatly reduce labor costs, making it an essential equipment for construction sites.

The speed of the differential electric box is adjustable: brushless differential motor, more flexible turning, stable and durable performance. Low noise and vibration levels of JZ Electric Engineering Vehicles ensure excellent operator comfort along with reduced environmental impact.

High-quality materials of Electric Sweeper are strong and durable: The body of JZ electric engineering vehicles are made of high-quality materials, reinforced steel bars, strong and durable, bearing compression and corrosion resistance.

Main Features of Electric Sweeper:

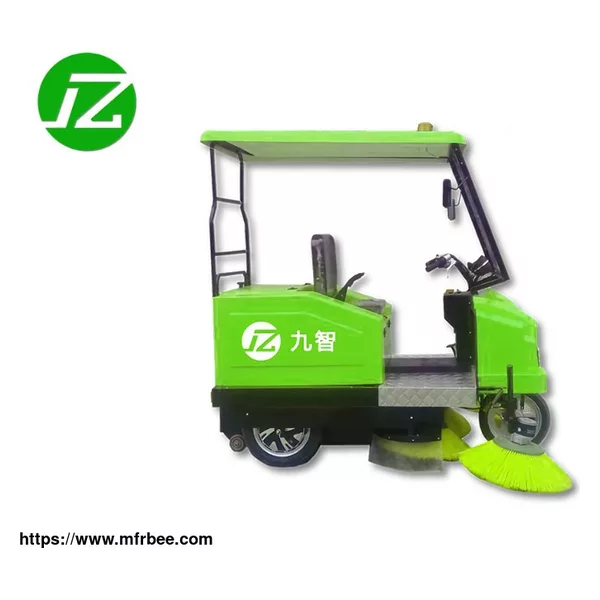

JZ2000 is an integrated automatic cleaning machine with the combination of vacuuming, sweeping and spraying water, which is used in outdoor environment. This sweeper is mainly used for outdoor cleaning in parks, sanitation, cleaning companies, property management companies, squares and colleges.

* Built-in strong dust control system, doublevacuum cleanerfan, strongervacuum cleaner capacity,sweeping width can be up to 2000mm.

* Filter system adoptsdual-cylinder filter element,withmore convenient maintenance,andlarger filtration area.

*Adopt advanced high performance maintenance-free battery, no leakage and no harmful gas.

* With international advanced cleaning and throwing technology,the theoretical value ofdust box utilization rate can reach 100%.

* Reliable high-quality components thateffectively reduce maintenance and repair costs.

* Solid tires, airportdedicated, strong and durable.

* Largedustbin withcapacity up to 160L, increase work efficiency.

* Imported electric control system, over-current, under-pressureprotection,aggravating thechassis.

* Equipped with dualpiston hydraulic disc brake, good braking effect,thebrake discadoptswith perforated design, increasetheheat dissipation effect, so that the use of sweeper safer.

* Equipped with special fire extinguishers for vehicles.

* High efficiency atomizing nozzle, reduce the use of dust equipment.

Technical Parameter of Electric Sweeper:

Model: JZ2000

Dimensions: 2000*1500*1450

Motivation: 48 v

Weight: 480 kg

Rotation radius: 1200mm

Working speed: 0-7km/h

Driving speed: 1-8km/h

Climbing ability: 25°

Cleaning width: main brush + internal double brush 1450mm

Cleaning area: 10000㎡/h

Volume of dustbin: 140L

Continuous working time: 6-8h (normal temperature) 4-6h (-20℃)

Obstacle height: 8cm

Filtration area: 5㎡
