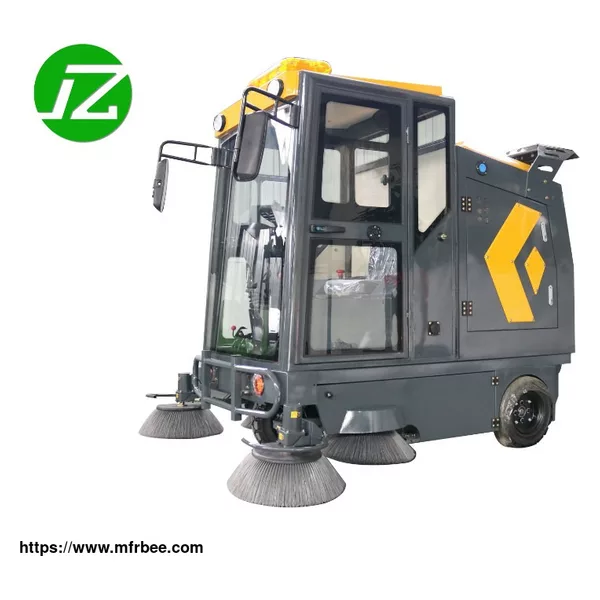

Electric Sweeper-JZ2100

https://www.wfjpre.com/Electric-Sweeper-JZ2100.html

JZ Electric Engineering Vehicles on the construction site has the following characteristics: heavy load, scientific design, convenience and flexibility.

Small size and flexible movement of Electric Sweeper: The JZ Electric Engineering Vehicles are reasonably designed, compact and flexible, and could be delivered to every place and every corner, so it could easily cope with various occasions.

Scientific design saves time and effort of Electric Sweeper: the load capacity of the JZ Electric Engineering Vehicles are three times that of the ordinary man-powered dump truck, and the efficiency is increased by more than 50%, greatly reduce labor costs, making it an essential equipment for construction sites.

The speed of the differential electric box is adjustable: brushless differential motor, more flexible turning, stable and durable performance. Low noise and vibration levels of JZ Electric Engineering Vehicles ensure excellent operator comfort along with reduced environmental impact.

High-quality materials of Electric Sweeper are strong and durable: The body of JZ electric engineering vehicles are made of high-quality materials, reinforced steel bars, strong and durable, bearing compression and corrosion resistance.

Main Features of Electric Sweeper:

JZ2100 upgraded version adopts automatic cleaning system of vacuuming and sweeping, which is mainly used for indoor and outdoor cleaning in parks, sanitation, cleaning companies, property management companies, squares and colleges.

* Built-in strong dust control system, doublevacuum cleanerfan, strongervacuum cleaner capacity,sweeping width can be up to 2100mm.

* Filter system adoptsdual-cylinder filter element,withmore convenient maintenance,andfiltration area up to 14㎡.

*Adopt advanced high performance maintenance-free battery, no leakage and no harmful gas.

* With international advanced cleaning and throwing technology,the theoretical value ofdust box utilization rate can reach 100%.

* Reliable high-quality components thateffectively reduce maintenance and repair costs.

* Solid tires, airportdedicated, strong and durable.

* Largedustbin withcapacity up to260L, increase work efficiency.

* Imported electric control system, over-current, under-pressureprotection,aggravating thechassis.

* Equipped with dualpiston hydraulic disc brake, good braking effect,thebrake discadoptswith perforated design, increasetheheat dissipation effect, so that the use of sweeper safer.

* Equipped with special fire extinguishers for vehicles.

* High efficiency atomizing nozzle, reduce the use of dust equipment.

Technical parameters of Electric Sweeper:

Model: JZ2100

Dimensions: 2500*2100*2200mm

Weight: 800 kg

Power: 48V*150A (6 batteries)

Drive power (motor) : 1800W

Main brush motor: 800W

Vacuum motor: 500W*2

Working speed: 0-8km/h

Driving speed: 1-20km/h

Climbing ability: 30°

Length of main brush: 800mm

Side brush diameter: 600mm

Cleaning width: 2100mm

Cleaning area (working efficiency) : 18500㎡/h

Volume of dustbin: 260L

Water tank volume: 200L

Continuous working time: 6-8h

Maximum working capacity: 8L/min
