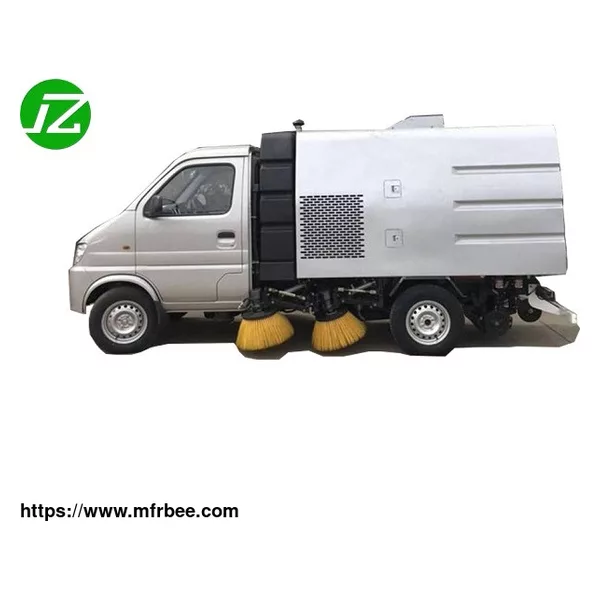

Changan Sweeper Truck

The Changan Sweeper Truck use middle 4pcs cleaning brushs,and rear installate suction mouth,so the truck cleaning effect is good ,and the truck water tanker and garbage box made by SS340 stainless steel ; Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean. Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity,reduce due to a blocked filter and the air resisance.

Main Features of Changan Sweeper Truck:

*Convenient way to dump garbage
*Spare parts with exquisite materials
*Increase an oil bath type filtering device, used to bond the gas flow in the fine dust, so that the engine air cleaner.
*Using well-known hydraulic system filter, fully guarantee the safe used.
*Cleaning brush made by quality hydraulic motor ,high working effect ,and long life
*Brush adopts a spring suspension obstacle avoidance structure, prevent brush obstacle was damaged in may.
*The left and right front brush disc can be independent or linked, improve the operating and traffic safety, and reduce the brush wear, reduce running cost.

*A variety of configuration, multiple choice: to make the vehicle truly make a multi-purpose vehicle, the vehicle can also be based on user needs, choose the snow shovel device assembly.

Technical Parameter of Changan Sweeper Truck:
Model: Changan Sweeper Truck
Overall dimensions: 4810x1850x2150mm
Weight: 2840Kg
Cleaning width: ≥3-3.3 m
Sewage water tanker volume: 0.5m³
Garbage box volume: 1.5m³
Working speed: 3～15 km/h
Maximum grain size and quality: 100 mm\±1.5kg
Cleaning rate: ≥96%
Clean speed: 5-20（km/h）
Clean width: 3200（mm）
Max clean capacity: 40000（㎡/h）
Brushes quantity: 4pcs
Fuel consumption per hundred kilometers: 8L
Chassis brand: Changan
Fuel type: gasoline
Wheelbase: 2600（mm）
Max speed: 100（km/h）
Outside type: According request
Drive type: LHD
Engine model: AA
Displacement: Many ways
Seat: 2
