Press Machine For Sale

EZHONG isone ofprofessionalpress machine suppliers

TypesofCompressionMachine forSale

Press Machine Working Principle

EZHONGmetal pressing machine

The fuselage is a C-shaped single-arm structure, with wall panels on both sides, waist panels and reinforcing ribs welded together to form a rigid truss. The oil cylinder and the worktable are connected with the body of bending press machine by bolts, and there is a blanking hole in the center of the worktable. The indenter is connected to the piston rod through a thread.

The main oil cylinder is a double-acting piston-type oil cylinder, and the bottom of the cylinder is a closed-bottom integral structure. The piston head is installed in the cylinder body. On the outer ring of the piston head, there are an upward and downward import UN-shaped sealing ring and the cylinder wall. Seal; so that the upper and lower oil chambers are formed in the cylinder.

A guide sleeve is installed at the cylinder port to ensure good guiding performance when the piston moves. Two UN-shaped sealing rings are installed in the inner hole of the guide sleeve, and an O-shaped sealing ring is installed on the outer circle of the guide sleeve to ensure the sealing performance of the cylinder port. The end of the cylinder mouth is connected by bolts, and a dust ring is installed at the end to prevent dirt from entering the cylinder and keep the oil clean.

The equipment that uses hydraulic transmission technology for pressure processing can be used to complete various forging and press forming, such as forging of steel and forming of metal structural parts.

What Is The Use Of Press Machine?

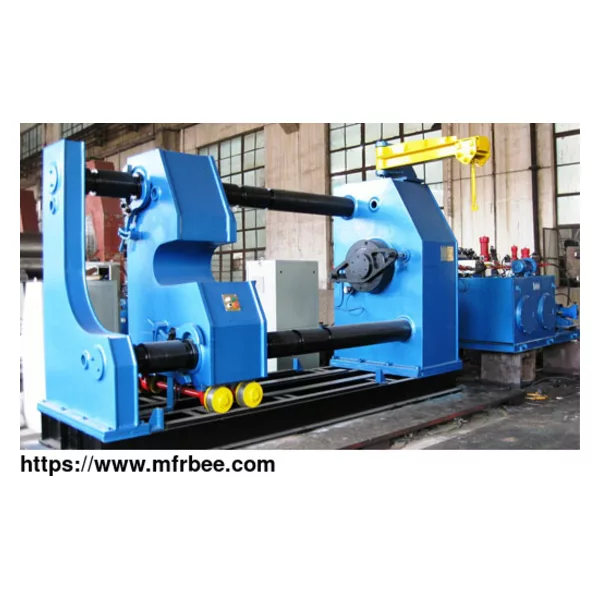

EZHONG isone of professionalcompression machine manufacturers,compression machine suppliers. At present, China's largest horizontal axle press machine is manufactured by EZHONG. EZHONG's horizontal axle press machine and single-arm hydraulic press machine have absorbed the advanced technology from Germany and Japan. They are machines with EZHONG's independent intellectual property rights and have a strong technical force. Our forging press machines are widely used in railway locomotives, metallurgy, iron and steel, mining, machine repair, machine manufacturing, and large-scale motor manufacturing industries. EZHONG compression machines have a wide range of uses, high production efficiency, and high safety systems.

Why Choose EZHONG Press Machine?

- The hydraulic system is located inside the pressure machine body, with a beautiful appearance, simple and convenient operation, high efficiency, time-saving, labor-saving, and cost-saving.

- This series of presses are equipped with independent hydraulic and electrical control systems, using buttons for centralized control, which can realize two molding processes of fixed stroke and fixed pressure, and have functions such as pressure display, stroke, and pressure adjustment.

- The four-pillar guide pillar is oriented to improve the accuracy of the product, and the pillar and piston rod are plated with copper and hard chromium after quenching to ensure the wear resistance and high roughness of the surface. The oil pump inlet is equipped with a unique filter device to ensure The service life of oil pumps and valves.

- The oil connection adopts an imported high-pressure hose, which greatly reduces the noise of the bending press machine.

- The whole automatic power press machine adopts integral steel plate welding, which is thick and beautiful and has good stability.

- Automatic pressure machine is manufactured in accordance with EC safety standards and has CE certification.

EZHONG is one of the leading press machine suppliers in China, and we have different types of compression machine for sale. You can get high-quality EZHONG pressure machines at reasonable prices.

If you want to know more information aboutcompression machine uses, please visit our website.
