Firewood Processor JZ-FR50T450
- Packaging
- N/A
- Delivery
- N/A
Specifications
PRODUCT DESCRIPTION

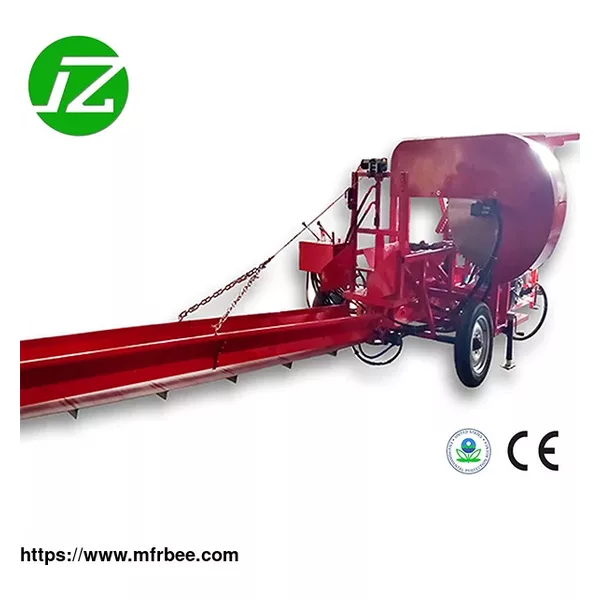

Automatic firewood processor with 35HP Kohler gasoline engine, electric start, equipped with a 1065mm circular saw, with max. 450mm splitting diameter and 610mm splitting length, 50 ton splitting force, towable with trailer coupler and wheels, come with accessories of below.
* 3m-5m firewood discharge belt conveyor
* hydraulic log table with chain to load wood into machine
* 4-way splitting wedge (6-way, 8-way, 12-way wedge optional)
Technical parameters
| Model name | JZ-FP50T450 |
| Engine Type | Petrol engine |
| Engine brand | Kohler |
| Engine power (HP) | 35 |
| Engine start | Electrical start |
| Splitting force (T) | 50 |
| Length of feeding wood (mm) | 1000-6000 |
| Diameter of feeding wood (mm) | 450 |
| Max length of splitting wood (mm) | 610 |
| Max diameter of splitting wood (mm) | 450 |
| Blade diameter (mm) | 1065 |
| Blade rotate speed (rpm) | 2000 |
| Split Cylinder Diameter (inch) | 5 |
| Wedge with hydraulic adjust | 4-way (6-way, 8-way, 12-way optional) |
| Adjustable height of wedge (mm) | 150 |
| Out Feed Wood Conveyor Length (mm) | 3000 - 5000 |
| Supporting Customization | |
| Control valve | 5-handle, 14-Directional |
| Oil pump flux (GPM) | 32 |
| Oil tank capacity (L) | 54 |
| Ram speed / hydraulic cycle (s) | 6 |
| Tyre | 106/104R highway tire |
| Ideal Productivity | 15 cbm/hour |
| 4 cord/hour | |
| Machine size (L*W*H, mm) | 4200*1500*1590 |
| Package size (L*W*H, mm) | 4820*1820*1810 |
| Weight N/G. (kg) | 1200/1500 |
| MOQ (piece) | 1 |
Highlights:
1. All operation is completed on the hydraulic control platform by only one labor, which reduced labor cost and increased working efficiency.
2. Hydraulic adjusting height of out-feed conveyor, comparing with manually adjusting by winch, lowered risk of incident of worker's compensation insurance.
3. Adding emergency stop button on the operation platform, which level up the safety precaution again.
4. 37HP petrol engine and 32 gpm two stage pump ensure steady and powerful power output.
5. 4-6-8-12 all in one height hydraulic adjustable splitting wedge, no need to switch wedges when needed different size of firewood, just use the joystick on platform to adjust wedge height.
6. Length of out-feed conveyor supporting customization, from 3 meters long to 10 meters long. Fit all kinds of your needs.
Features & Warranty
1. Certification: CE, EPA.
2. 2-year warranty.
3. Machine testing before shipping.
4. Customization accepted.
5. We own our factory and can supply the machines with competitive price.
Packaging & Shipping
1. Shipment within 30 days after receiving the deposit.
2. Packed in iron crate.
3. Package size: 4820*1820*1810mm
4. Port: Qingdao
