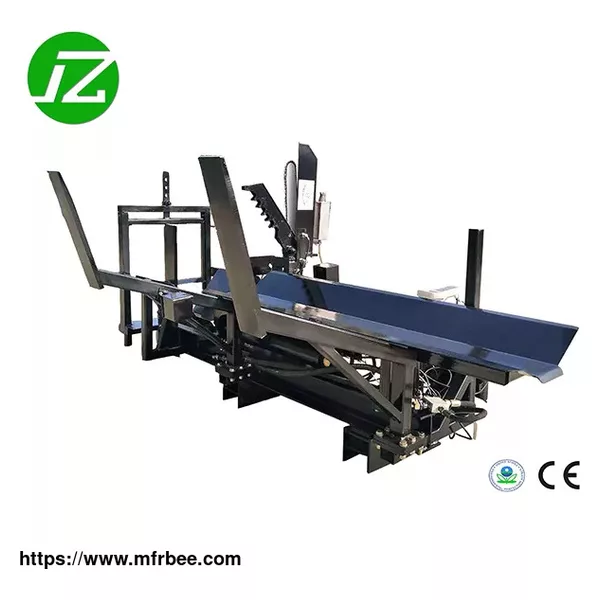

Firewood Processor JZ-FR30TSS-C

The splitting force of 30TSS series could reach 35Ton, Max Splitting Diameter 500mm, with Stihl chain saw. The most attractive design is its fully automatic remote operation. After connecting to the skid steer, all the wood processing operations are completed by remoted keyboard.

Product Description

JZ-30TSS-C Firewood Processor for skid steer has become best seller recently with its unique design and service.

The splitting force of 30TSS series could reach 35Ton, Max Splitting Diameter 500mm, with Stihl chain saw. The most attractive design is its fully automatic remote operation. After connecting to the skid steer, all the wood processing operations are completed by remoted keyboard.

Technical parameters

Model name	JZ-30TSS-C
Power source	Tractor or skid steer
Minimum Engine power	35HP
Engine start	Electrical control Kit Solenoid
Splitting force	35T
Max length of feeding wood	6000mm
Diameter of feeding wood	450mm
Max length of splitting wood	580mm
Max diameter of splitting wood	450mm
Cable length	6000mm
Wedge adjust method	manual adjust
Wedge with hydraulic adjust	4-way
Rotating speed of chainsaw	10000 rpm
Chain saw brand	Stihl
Chain saw length	25-inch
Mini time of sawing down	3s
Adjustable height of wedge	150mm
Control valve	Electrical control Kit Solenoid
Ram speed / hydraulic cycle	3s
Package size (L*W*H, mm)	2450*1230*1320
N./G. Weight	600/660kg

Principle of work

The equipment is well connected with the Skid Steer through the installation plate of the Skid Steer or tractor. Next, driven by the Skid steer, the round wood is shoveled to the wood conveyor by the loading shovel. Then fasten the teeth and press the wood on the wood conveyor. The saw starts to work and cut the wood. After the wood is cut off, it falls on the wood receiving plate of the main machine. The wood splitting cylinder pushes the wood onto the wood splitting knife, and the wood is split into four or six,eight pieces.

Detailed Images

Operating by remote greatly reduces the risk of manual operation. The 6-meter long remote control cable allows workers to operate the machine anywhere within a six-meter radius, even in the cab of the skid steer.

Hydraulic control system and automatic controlling provide higher work efficiency than manual model. The ideal working efficiency can reach 12 CBM/hour ( 3 cord/hour).

The main parts have been assembled and packaged after testing. Customer only need to assemble the tubes and lifter arm by bolts.

Features & Warranty

1. Certification: CE, EPA.

2. 2-year warranty.

3. Machine testing before shipping.

4. Customization accepted.

5. We own our factory and can supply the machines with competitive price.
