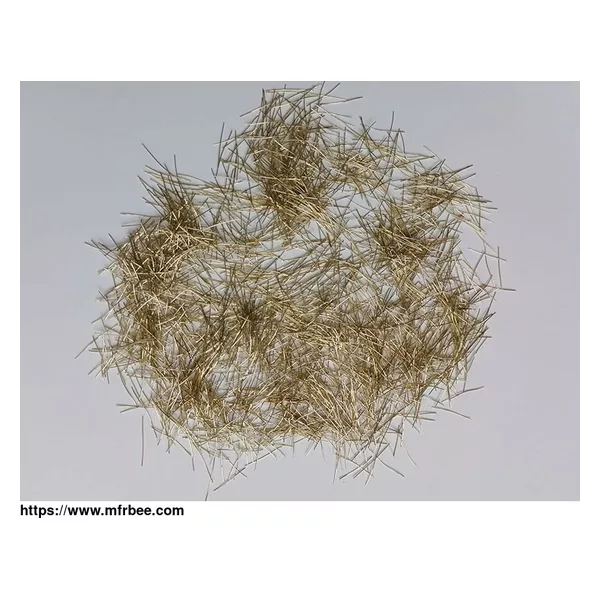

SDS Micro Copper Coated Steel Fiber

Micro brass fibers are made of copper coated steel wire , which is the most important materials of RPC and UHPC. UHPC has the features of very high strength, high tenacity, very good durability, and volume stability. It is a good and a new kind of construction materials. Micro steel fiber is widely used in the building of high way, expressway, RPC cover plates, and UHPC construction.

Advantage of Brass Coated Micro Steel Fiber

Performance Advantage

With good dispersion performance in concrete; less impact in UHPC Liquidity and high tensile strength.

Characteristic Advantage

Providing good impact, fatigue, shrinkage control, and ductility in all kinds of concrete.

Material Advantage

Significantly improve the toughness of concrete.

Types of Micro Brass Coated Steel Fiber

SDS-1823 0.18-0.23mm Diameter 13±1mm Length Copper Micro Steel Fiber

SDS-1835 0.18-0.35mm Diameter 13±1mm Length Copper Micro Steel Fiber

SDS-2013 0.20mm Diameter 13mm Length Copper Coated Micro Steel Fiber

SDS-2213 0.22mm Diameter 13mm Length Copper Coated Micro Steel Fiber

Specifications of Micro Copper Coated Steel Fiber

Products Diameter Length L/D ratio TS Type Package

SDS-18-23 0.18-0.23mm 13mm 50-70 >2850MPa Loose 20kg/bag,1ton/pallet

SDS-18-35 0.18-0.35mm 13mm 37-70 >2850MPa Loose 20kg/bag,1ton/pallet

SDS-2013 0.20mm 13mm 65 >2850MPa Straight 20kg/bag,1ton/pallet

SDS-2213 0.22mm 13mm 59 >2850MPa Straight 20kg/bag,1ton/pallet

Star Smith is one of professional concrete fiber suppliers that able to offer many types of steel fibers used in concrete and other circumstances including glued steel fiber, loose end steel fiber, brass fibers, etc. Contact us to learn more about our steel fibers!
