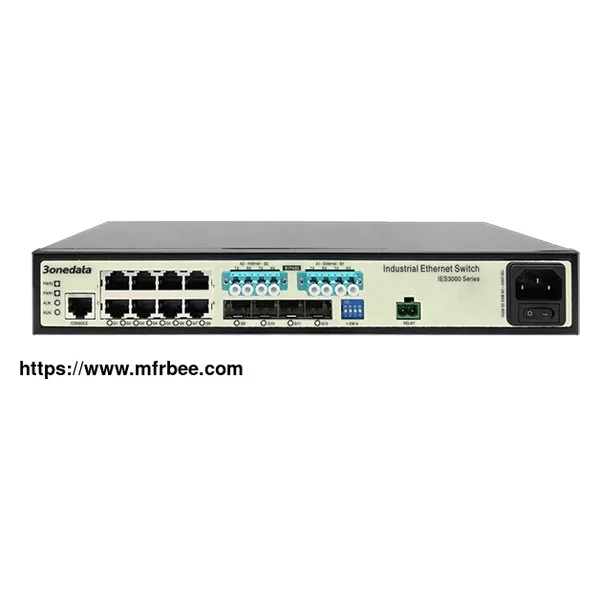

IES3000 Series

IES3000 Series

Industrial 12-port Full Gigabit Managed Bypass Industrial Ethernet Switches

Support 8 gigabit copper ports (Optional PoE), 4 gigabit SFP slots and 2 Bypass

Support ERPS, RSTP and STP ring network protocol

Support SW-Ring patented technology, automatic recovery time of network failure < 20ms

Support SNMP and IPv6 management

Support dual power supply redundancy, optional AC/DC power supply

Support -40~75℃ wide operating temperature range

IES3000 series is industrial 12-port full gigabit managed ethernet bypass switch. This product provides gigabit copper port (optional PoE), gigabit SFP slot and 2 Bypass. It adopts rack mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as ERPS, STP/RSTP/MSTP ring network protocol, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, IPv6 Management, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

There are two independent power supply circuits inside the device, which can ensure that it can operate normally when one fails. DIP switch can achieve restoring factory defaults setting. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
