ICP222-2F-2CI

ICP222-2F-2CI

DIN-Rail Mounting 2-CAN Server

Support 2 CAN ports to 2 100M Ethernet fiber ports

Adopt SW-Ring ring network patent technology and support single ring function. Automatic recovery time from network failure is <20ms

Support multiple operating modes like TCP Server, TCP Client, UDP and TCP Auto

Support 5K~1000Kbps arbitrary baud rate

Support 12~48VDC wide voltage input

Support -40～75℃ wide operating temperature range

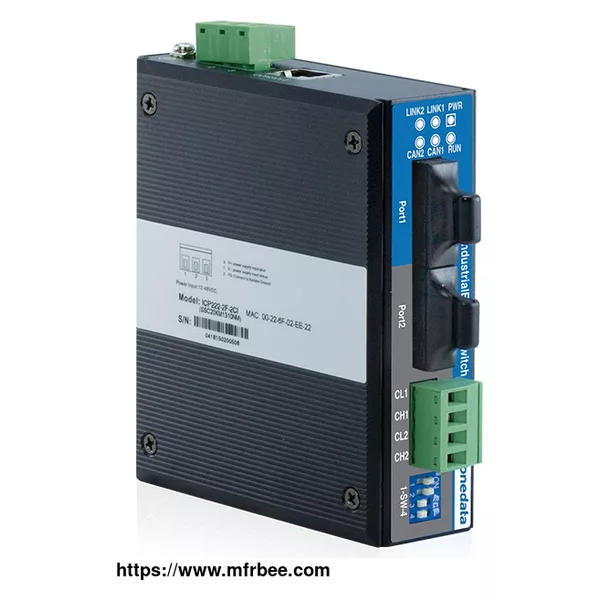

ICP222-2F-2CI is a CAN server that has integrated 2 CAN ports and 2 Ethernet ports internally. It can implement interconnection between CAN-Bus network and Ethernet network easily to further extend the communication range of CAN-Bus network. It supports 2 CAN to 2 100M Ethernet fiber port and adopts DIN-Rail mounting which can meet the requirements of different scenes.

Canserver

DIP switch could implement restoring factory setting and accessing terminal resistor. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.
