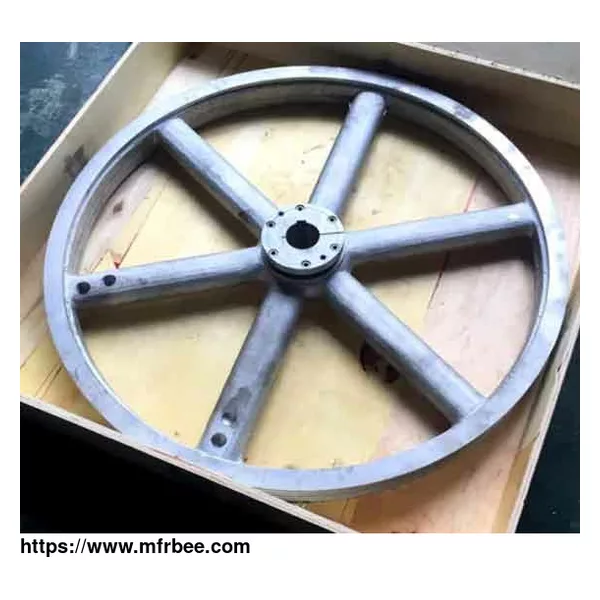

Cooling Tower Belt Reducer For BAC

The belt reducer for cooling tower is mainly used for the motor speed reduction of cooling tower, especially for the occasions with strict noise requirements, such as shopping malls, hotels, schools, enterprises and institutions. The belt has good elasticity, and can ease the impact and vibration in work. It runs smoothly without noise, and the belt slips on the pulley when the load is too large, so it can prevent other parts from being damaged and play a role of safety protection. Belt is an intermediate part. It can select the length according to the need in a certain range to adapt to the working conditions with large center distance.

Parameter Of Cooling Tower Belt Reducer For BAC

Model Nos.of

Groove H H1 H2 H3 Ø1 Ø2 Ø3 Ø4 N-ØD K T

NBR-5 2 45 50 175 76 355 300 263 34 4-Ø13 37 8

NBR-6 3 65 60 225 105 456 348 300 38 4-Ø14 41 8

NBR-8 4 85 62 265 120 456 428 390 50 6-Ø16 53 12

NBR-10 4 85 62 310 135 608 500 450 50 4-Ø16 53 12

NBR-12 5 105 62 310 143 660 500 450 60 4-Ø16 63 12

NBR-14 6 125 62 320 153 660 500 450 75 6-Ø16 79.5 20

Advantages Of Cooling Tower Belt Reducer For BAC

BAC belt reducer has stable transmission, low noise and small vibration; The driving structure of belt pulley is simple and easy to adjust. The belt pulley drive has the function of overload protection; The adjustment range of the center distance between the two shafts of the belt pulley drive is large.

Contact us to buy cooling tower or know the cooling tower application.
