Firewood Processor JZ-FR22T350
- Packaging
- N/A
- Delivery
- N/A
Specifications
Product Description

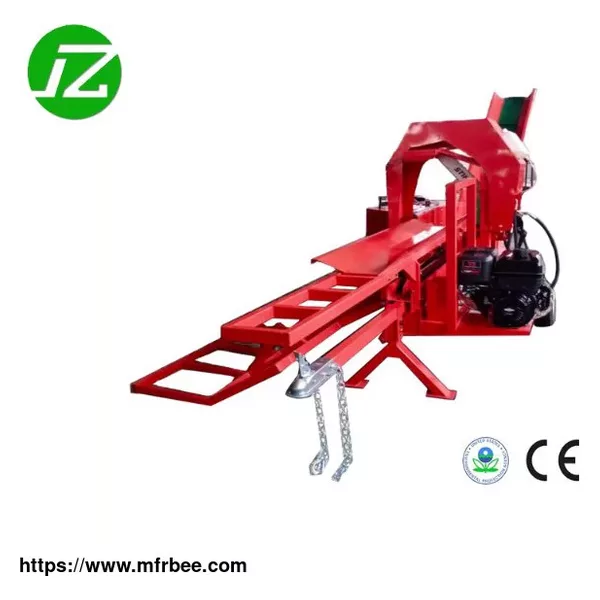

Automatic firewood processor with 12HP diesel engine, electric start, equipped with a Stihl 25" chainsaw, with max. 350mm splitting diameter and 580mm splitting length, 22 ton splitting force, towable with trailer coupler and wheels, come with accessories of below:
* 3m firewood discharge belt conveyor
* hydraulic log table with chain to load wood into machine
* 4-way splitting wedge (6-way, 8-way, 12-way wedge optional)
Technical parameters
| Model Name | JZ-FR22T350 |
| Engine Type | Diesel engine |
| Engine power (HP) | 12 |
| Engine start | Electrical start |
| Max Splitting force (T) | 22 |
| Length of feeding wood (mm) | 1000-6000 |
| Diameter of feeding wood (mm) | 350 |
| Max length of splitting wood (mm) | 580 |
| Max diameter of splitting wood (mm) | 350 |
| Wedge with hydraulicadjust | 4-way |
| Time of sawing down (s) | 3 |
| Adjustable height of wedge (mm) | 150 |
| Max lifting weight of lifter (kg) | 800 |
| Control valve | 5-handle, 14-Directional |
| Oil pump flux (GPM) | 16 |
| Oil tank capacity (L) | 40 |
| Ram speed / hydraulic cycle (s) | 6 |
| Tyre size | 16x6.5-8 |
| Package size (L*W*H, mm) | 2500*1600*1700 |
| N./G. Weight (kg) | 805/905 |
Features & Warranty
1. Certification: CE, EPA.
2. 2-year warranty.
3. Machine testing before shipping.
4. Customization accepted.
5. We own our factory and can supply the machines with competitive price.
