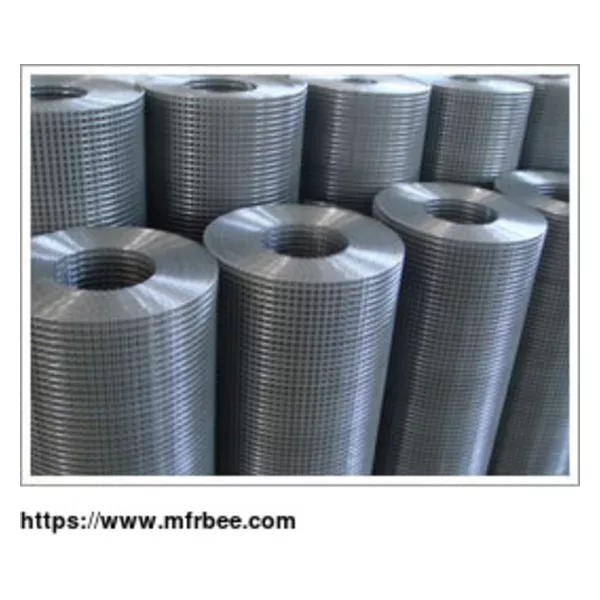

Stainless steel welded wire mesh is a durable and strong hardware mesh with square hole or rectangular hole structure. Supplied in rolls or flat panels. Formed with stainless wire of same diameter in both directions welded together a flat surface matting or fabric with uniform openings. The material wire is rust resistant, corrosion resistant that can be exposed to corrosion for a long time. Because of its natural properties, stainless steel welded wire mesh need no additional finish procedures to protect it.
Material: Mainly stainless steel wires. Mild steel, bright annealed mild steel, galvanized steel material can be also applied.
Features: Compared with woven wire meshes, stainless steel welded mesh has many good properties, such as strong structure, anti-corrosion and anti-rust, it is not easy to loosen even be cut into parts or exerted force on the parts.
Application: Welded wire fabric can be widely used in fishery industry, food drying, marine use, rodent proofing, welded wire mesh cages for animals, construction, decoration, mesh fences, welded mesh shelves, decks, racks, and so on. It also serve as guards in buildings and factories, as animal enclosure and wire mesh fences in agriculture; serves as tree guards in horticulture industry.
Roll size :
Roll Width: 24inch, 36inch, 1metre, 48inch, or 72inch.
Roll Length: 100 feet or 150 feet.
Note: other roll width or roll length can be made according to request.
Stainless Steel Welded Wire Mesh, 304 and 316 Grade
Stainless Steel Welded Wire Mesh Grade 304
Mesh Size 25x25 (1"x1")
Wire Diameter 3mm (11 SWG)
Welded Stainless Steel 316 Wire Mesh
Open mesh 1/2 "
Wire dia.2mm
Roll size: 5ft widthx500 meters
Stainless Steel Wire Mesh Panels with Free Wire Above the Panels
SS Wire Mesh
Free wire above weld mesh panels for tying
Horizontal wire: 2.5mm diameter
Vertical wire: 3.0mm diameter
Stainless Steel Wire Mesh Welded Panels with Free Wire
Tying of Adjecent SS Welded Wire Mesh with 14 SWG SS Wire
SS Wire Mesh, Welded
SS Wire Mesh
As per drawing.
2.5 mm Dia Horizontal Wire: Spacing 200mm
3mm Dia Vertical Wire: Spacing 100 mm
Free Wire above weld mesh Panel - 1700mm
Height mm | Width mm | Nos per Tower | Area / Mesh Sqm | Area / Tower sqm |
5400 | 1200 | 900 | 6.48 | 5832 |
5400 | 1200 | 900 | 6.48 | 5832 |
5400 | 1300 | 25 | 7.02 | 175.5 |
5400 | 1100 | 425 | 5.94 | 2524.5 |
5400 | 1200 | 150 | 6.48 | 972 |
5400 | 1000 | 25 | 5.4 | 135 |
5400 | 1200 | 300 | 6.48 | 1944 |
