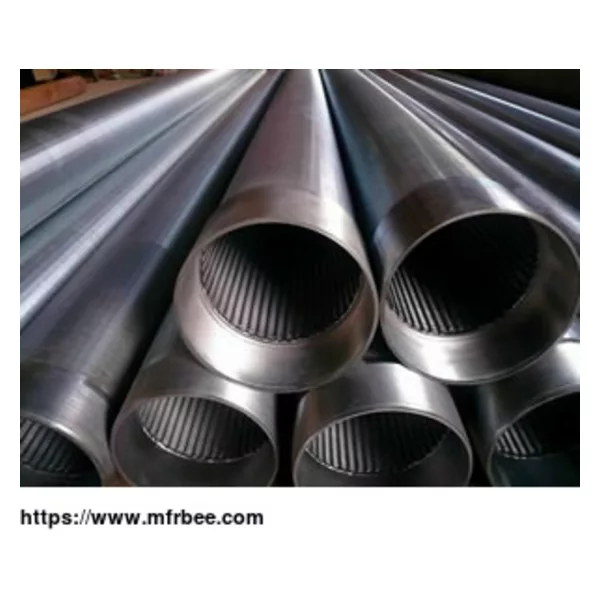

Stainless Steel Wedge Wire Screen

Wedge wire screen is a kind of effecitve sand control filter screen manufactured by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact. The numerous combinations of profile wires and support rods enables a flexible design with a wide range of apertures by changing the wires and rods structure. Hence we can supply wedge wire screen according your technical or cosmetic specification. We supply wedge wire in the forms of pipe screen or sieve bends.

Processing and Structure:
Stainless steel wedge wire screens are manufactured using unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening.

Advantages:
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped profile wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

Uses: Stainless steel wedge wire /profile wire/ wire wrapped screen is the most cost effective filter solution used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the ( petro )chemical industry, food and process industry and architecture.
