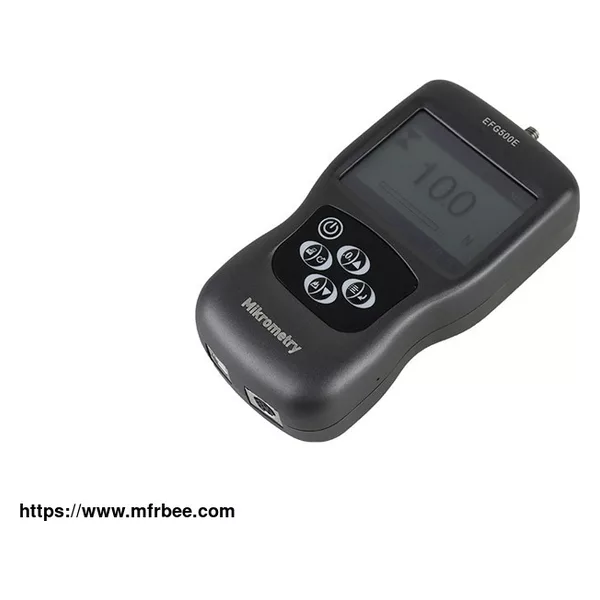

EFGE Digital Push Pull Force Gauge
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- carton
- Delivery
- 5 Days
Specifications
With compact size, high accuracy, digital push force meter is easy to operate and handy to carry out. The digital pull force gauge, also called digital push pull force meter, can be widely applied
in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and other industries for testing of pull or push
load test, insertion force or pull and destructive experience.
EFGE digital push pull force meters is a high-precision push-pull force test instrument. The electronic push pull force gauge adopts aluminum alloy shell, and the whole machine is light in weight.
It is especially suitable for hand-held measurement. It has built-in high-precision sensors and mechanical overload.
The internal sampling frequency of this digital force gauge meter is 1000HZ, the software has tracking, peak, and preset modes, which can be applied to the break test of the product. Compared with
the compression force gauge, the insertion force test and other force tests, up to 500 measurement data storage.
Feature Of Digital Push Pull Force Gauge EFGE
Durable metal case
Reverse display setting
Mechanical overload protection
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Accuracy: ± 0.3% FS
Sampling Rate: 1KHz
Specifications Of Digital Push Pull Force Gauge EFGE
Accuracy ± 0.3% F.S.
Selectable Units N、gf、 kgf、 of and bf
Display 160*128 dot matrix LCD(2.8 inches) with LED Backlight
Overload Capacity 150% of F.S. (LCD blinks beyond 110%)
Overload Protection Overload Protection Mechanism to prevent to be damaged
Measurement Mode Track 、Peak、Preset Peak
Data Sampling Rate 1KHz
Display Update Rate 10 times/second
Memory 500 data
SetPoint Programmable high and low limits
Battery Indicator The display flashes the battery icon when the battery is low
Power 3.6VDC 400mAH Ni-Mh rechargeable batteries
Battery Life Approx. 7 hours per charge
Charger / Adaptor Universal USB/BM charger, Input:110~240VAC
Temperature Effects <0.03% FS per °C
Communication USB or RS-232
Software Free software for USB communication
Outputs RS-232, "Within" set point output， "Under or over" set point output
Operating environment Temperature: -10 to 40°C
Relative Humidity: 20 to 80%
Storage environment Temperature: -20 to +50°C
Relative Humidity: 5 to 90%
Dimensions 150*72*33mm
Weight: 0.45 kg (1 lb)
Accessories AC adapter/charger，6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
Options Mini-printer, Measuring Adapter, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.
Models Capacity/Resolution
N kgf lbf Ozf gf
EFG10E 10/0.01 1/0.001 2.2/0.001 35/0.01 1000/1
EFG50E 50/0.01 5/0.001 11/0.01 180/0.1 5000/1
EFG100E 100/0.1 10/0.01 22/0.01 350/0.1 -
EFG500E 500/0.1 50/0.01 110/0.1 1800/1 -
EFG1000E 1000/1 100/0.01 220/0.1 3500/1 -
As a measuring instruments supplier, we have types of digital torque gauge for sale, if you have needs, please contact us.
