Mobile security barrier

Mobile Security Barriers are the specially designed facilities combining vehicles and razor wire coils

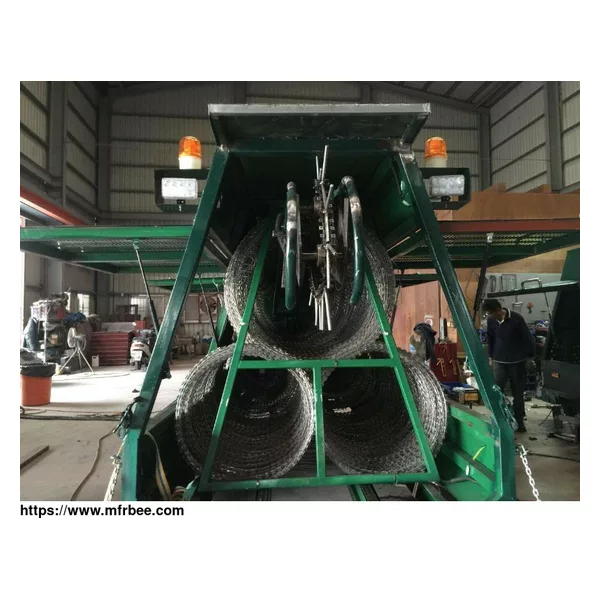

Mobile Security Barrier complete unit includes a towing vehicle and a trailer unit (Caravan) which contains 4 coils of concertina wire module at length of 150m as standard setting, including 3 coils concertina razor wire with a length of wire barrier @ 40 meters and 1 module of razor barbed wire barrier at a length 30 meters.

The detail Technical Specification of Mobile Security Barrier is as below.

Tech spec description

Ripper Blade Razor Barbed Wire Coils Units

a. Form of razor barbed wire, spiral-shaped and arranged into three sections (1 top, 2 bottom) contained in special packaging such as caravans making it easy to move, quick installation and packaging.

b. Dimension / size of standard razor barbed wire barricades for Police:
1) Diameter of coil: 900 mm
2) the coil diameter: 700 mm
3) The length of the barricade minimum: 120 meters (3 x @ 40 m)
4) The width of the barricade: 1.4 to 1.5 m
5) High barricades: 1.5 to 1.7 m
6) barbed wire Diameter: 2.4 to 2.6 mm
7) The distance between spines: 12 - 50 mm
8) The width of spines: 12 - 15 mm
9) High spines: 6 - 7.5 mm
10) Type / Thickness of thorns: Ripper Coil / 0.45 to 0.5 mm
11) The number of spirals: 55 of each coil (each 10 meters)
12) Number of clips: 5 each spiral
13) Equipped with sling stopper wire diameter of 5 mm

c. Razor wire materials:
1) Material of wire core (core) is a stainless steel wire (High tensile) with a minimum tensile strength of 170.1 kgf / mm ² cross-sectional area 4.91 mm ², wire cross-sectional diameter of 2500 mm with a load of 835 kgf min.
2) Material of razor or barbed is a thin steel plate (0.45 to 0.50) mm shaped like a razor and a wire attached to the core that the barbed wire into a single unit. Both materials are galvanized steel with coated layer of zinc with a heavy coating 135-145 g /m².
3) The number of torsion on the torsional test results with the diameter of 2.50 mm and length of 250 mm is 25 torsion.
