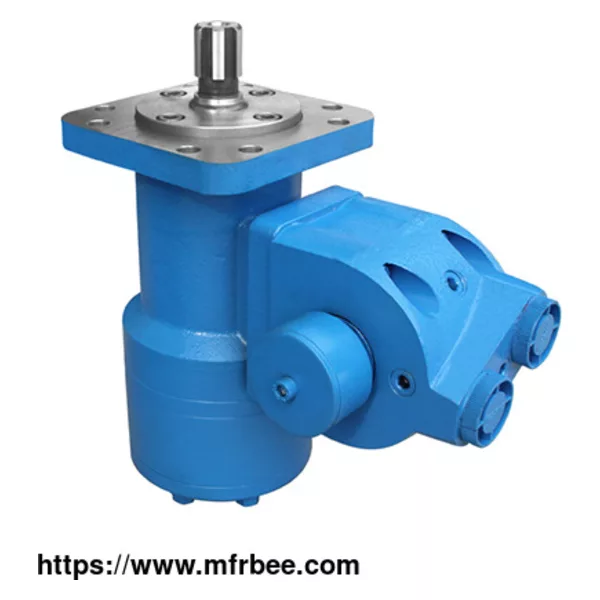

BM3 Cycloid Hydraulic Motor
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- N/A
- Delivery
- 4-5weeks
Specifications
What is BM3Cycloid Hydraulic Motor
The BM3 hydraulic motor is a shaft-loaded cycloidal hydraulic motor with higher load capacity and can be used for long-term operation under high pressure. The overall structure design of the output shaft and the flow distribution mechanism, the indented stator and rotor, the rolling bearing support at both ends, and the special imported return rotary seal ring enable the motor to work under a high back pressure.
Characteristic Features of BM3 Cycloid Hydraulic Motor:
1. Supported by double ball-bearing, the shaft can carry bigger radial force than BM2 motor.
2. Credible design for shaft seal, which can bear high pressure and be used in parallel or in series.
3. Direction of shaft rotation and speed can be controlled easily and smoothly.
4. Best combination of efficiency and economy in medium duty applications.
5. The flow distribution mechanism and the output shaft are integrally formed, which has higher oil distribution precision and high volumetric efficiency.
6. Advanced shaft seal design, high back pressure bearing capacity.
7. Inset gear rotor and advanced spline parameters design with high mechanical efficiency and long service life.
Product Description
| Details: | ||||
| Type | Hydraulic Motor | Series | BM3 hydraulic motor | |
| Place of Origin | China (Mainland) | Brand Name | Gulex | |
| Displacement(ml/r) | 100-400 | Material | Ductile Iron | |
| max torque(N*m) | 178~464N*m | Surface treatment | Spray Painting | |
| pressure(MPa) | 9~17 MPa | Max cont Flow | 58L/min | |
| Speed(RPM) | 140~646r/min | Oil temperature | -35℃~80℃ |
