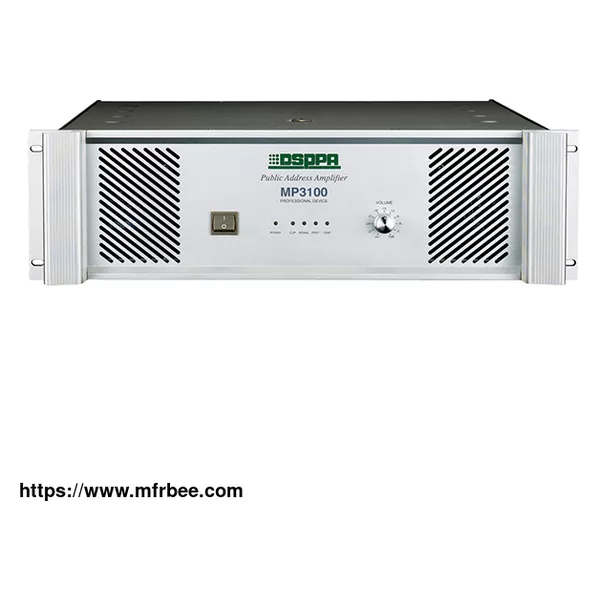

MP3100 1000W Power Amplifier

Features

● Transformers isolated 70V, 100V & 4~16 Ω speaker output,

● DC24V; rated power 1000W

● LCD display, clear status indication

● XLR socket and 6.3mm jack for additional mixer or amplifier link

● Output short circuit protection & alarm

● Provide data communication with MP99 series rack system

● Remote control through management software

Introduction

This pa amplifier 1000w is designed for commercial and industrial public address applications. Rack mount design in 3U type and rated power is 1000W.

Both balanced and unbalanced line inputs for each channel make it selectable for installer, balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V and 4 Ohm speaker outputs are convenient for installation when selection different speaker matching. A master volume control is included. Complete protection includes clip, short circuit, high temp and overload. Indications for power, signal, clip, protection and temp.

Specification

Model MP3100

Rated power 1000W

Rated output voltage 70V/100V/4-16 ohm

Inputsensitivity 0dB

S/N Ratio > 85dB

THD into 4W/1kHz <0.5%

Frequency response 50Hz ~15kHz (±3dB)

Indicators Power,clip,signal,Prot,and TEMP

Protection Power turn on/turn off,Overheating,DC voltage&Short Circut

Power Consumption 1800W

Powerrequirement DC24V/ AC220~240V/50~60Hz

Unit Size (mm) (L×W×H)483´480x88

Netweight 31Kg

Gross weight 34.5Kg
