1-4 Power Divider

Minimum Order: 1

Place Of Origin: Hangzhou City, Zhejiang Province

Packaging: carton, wooden box, wooden shelf

Delivery: 2-5 weeks

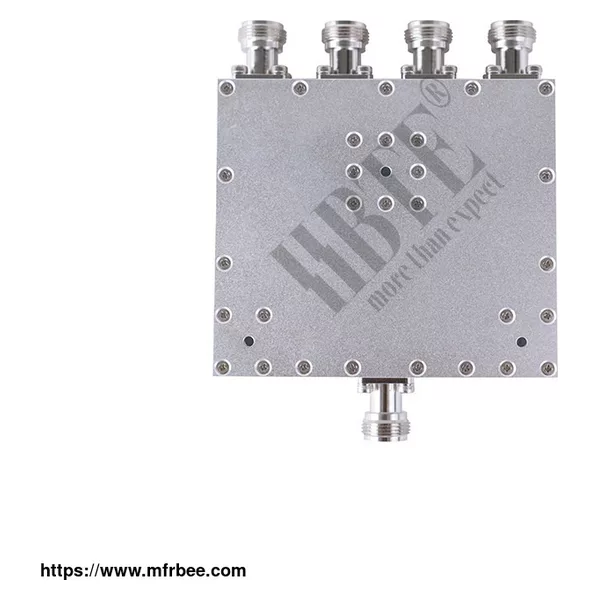

HBTE’ 1 4 power divider is a 4-way divider/combiner which providing 50W power handing and low insertion loss across 0.4Ghz to 6Ghz band. It is mainly used in feed network in antenna array, mixer, balanced amplifier.Its well performance ensures the accomplishment of distributing, combining and measuring power, isolating signal sources and measuring swept reflected coefficient etc .It features rugged construction with your choice of SMA or N-Type connectors and a heat sink for efficient cooling.

Key Features 1-4 Power Divider

Low insertion loss：It can ensure a better measurement.

Excellent temperature stability：When temperature change,It can guarantee minimal variation in electrical performance.

High Power handing：It is well suited for various transmission application.

Low VSWR：It can provides well thru-path transmission with low signal reflection.

Custom design available：It can meet your request.

Electrical Specifications at 25°C Of 1-4 Power divider

Frequency range 0.5-6Ghz

Port connector SMA(female)

Insertion loss ≤2.8 dB

VSWR ≤1.35 dB

Isolation ≥15 dB

Amplitude Balance ≤±0.5dB

Phase Balance ≤±5 deg

Power handling 50W

Impedance 50Ω

HBTE provides reverberation chamber, antenna measurement system, etc. Want to know more, please contact us.
