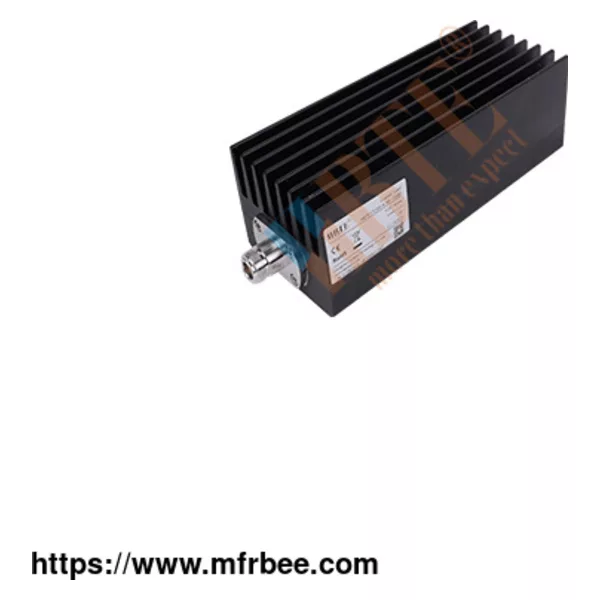

200W Coaxial Load
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- Hangzhou City, Zhejiang Province
- Packaging
- carton, wooden box, wooden shelf
- Delivery
- 2-5 weeks
Specifications
The coaxial load is mainly used to absorb the power of the radio frequency or microwave system, and can be used as a dummy load of an outdoor antenna, a terminal of a transmitter, and can be used
in the field. The CT series load has the characteristics of wide working frequency, small standing wave ratio, anti-pulse and anti-burnout.
Electrical Performance Parameters
Compliant： RoHS
Operating frequency range ： DC~4GHz
Maximum standing wave ratio ： ≤1.35
Characteristic impedance 50Ω
Average input power 200W
Peak power : 10 kW (5μs pulse width, 2% duty cycle)
Electrical Specifications At 25°C Of 5W Coaxial Load
Electrical Specifications
Standard RoHS
Frequency(GHz) RoHS
VSER ≤1.45
Impedance(Ω) 50
Average Power(W) 5
Peak Power(kW) 0.5（5μs pluse, 1% load cycle）
HBTE technology provides reverberation chamber, antenna measurement system, etc. Want to know more, please contact us.
