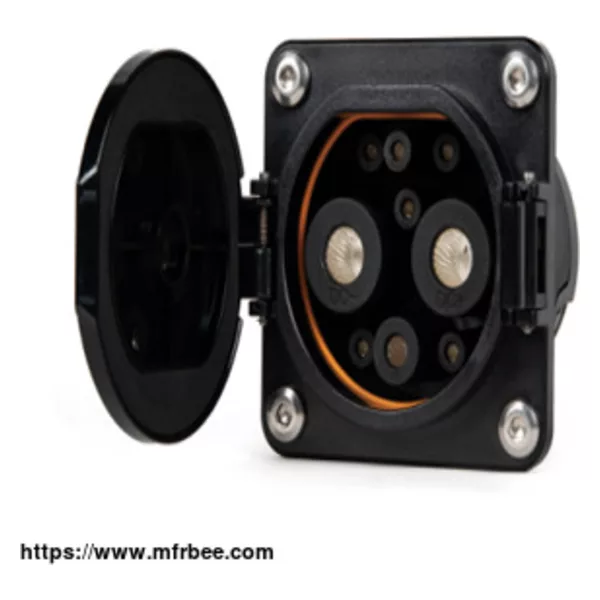

GB/T EV DC Charging Socket

Product Quick Detail

FOB Price
USD $100.00 / Piece
Packaging
Standard Exporting Packing，Carton Box，Customized Packing
Delivery
20 Days

Specifications

Mechanical Life

lMechanical life: no-load plug>10000times

lInsertion force:<140N

Applied Material

Shell material: thermoplastics, flame retardant grade UL94-0

Contact-tube: Copper alloy, silver-plated

Environmental performance

Operating temperature: -30℃~+50℃

Electrical Performance

The rated current:80A, 125A, 200A, 250A

The rated voltage: 750V/1000V

Insulation resistance: >2000MΩ(DC1000V)

Pins temperature rise:<50K

Withstand voltage: 4500V (DC+/DC-/PE)

Contact impedance: 0.5mΩMax

Features of GB/T EV DC Charging Socket
Conform to the provisions and requirements of GB/ T 20234.2-2015.

Have one or two PTC (PT1000) thermistor (can match with hela lock) ,have functions of signal feedback.

Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.

Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof.

Excellent protection performance, prodection grade achieved IP55 (working condition).


As one of the most reliable top electric vehicle charging companies, we provide ev charging products, ev car charger adapter, electric charging cable, electric car charging sockets and etc. Contact us to know more electric car socket types.
