API PIPE MILL FOR OIL TRANSPORTATION
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 60 Days
Specifications
API Pipe Mill For Oil Transportation is a series of machines that build longitudinal weld seam tubes and pipes with steel strips of certain width.
Technical Parameters of API Mill
Model Round pipe Square pipe Thickness Speed
mm mm mm m/min
RFT-114 Ф48-Ф114 40x40-90x90 1.5-4.5 70
RFT-140 Ф60-Ф140 50x50-110x110 2.0-5.0 60
RFT-165 Ф76-Ф165 60x60-130x130 2.0-6.0 55
RFT-219 Ф89-Ф219 70x70-170x170 2.0-8.0 50
RFT-273 Ф114-Ф273 90x90-210x210 3.0-10.0 45
RFT-325 Ф140-Ф325 110x110-250x250 4.0-12.7 40
RFT-377 Ф165-Ф377 130x130-280x280 4.0-14.0 35
RFT-406 Ф219-Ф406 170x170-330x330 6.0-16.0 30
RFT-508 Ф273-Ф508 210x210-400x400 6.0-18.0 25
RFT-660 Ф325-Ф660 250x250-500x500 6.0-20.0 20
RFT-720 Ф355-Ф720 300x300-600x600 6.0-22.0 20
Remarks Towards Mill API
1.Operator: 6-8 people (as size requests)
2.Casing tube, Oil pipe, API 5CTLine pipe, Oil pipe, API 5L
3.TRANSFERRING LOW PRESSURE LIQUID / OIL AND GAS
4.Oil tube is used for extracting oil or gas from wells
5.Casing tube is used in the wall of well
6.Line tube is used in the transportation of water, gas, and oil as well
7.Steel grade character: A,B,X42,X46,X52,X56,X60,X65....
Working Flow of API Pipe Mill For Oil Transportation
The general working flow of our Mill API is shown as follows:
Main Equipment Components of Mill API
Decoiler
Hoop cage or Horizontal Accumulator
Main Machine
Forming Machine
Roller System of Forming
Seam Guide
High-Frequency Induction Welding Machine
Roller System for Moving
Burr Removing Frame (Inside and outside Burr)
Water Cooling System
Sizing Machine
Roller System of Leveling
Speed Testing Wheel
Turkish Frame
Auto Flying Saw Controlled by Computer
Run out table
Electric Control Equipment
High-Frequency Welding Machine

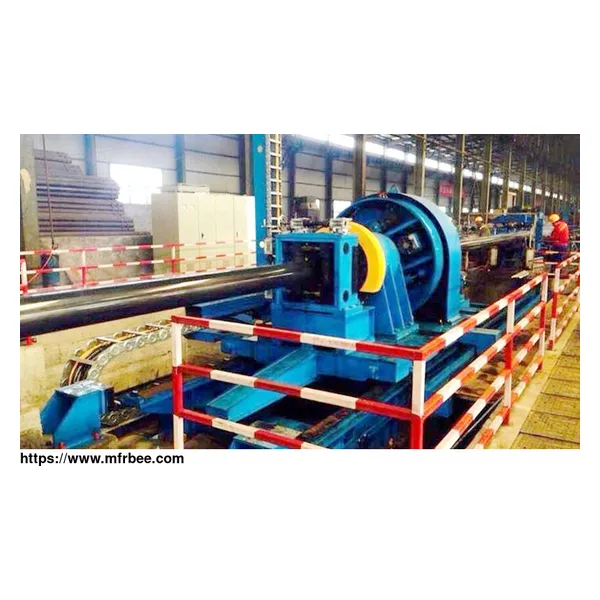

Operation Pictures of Mill API
Cutting and inspecting
Roll Forming Moulds
Finished Tubes by Mill API
Applications of API Pipe Mill For Oil Transportation
API pipe is widely used for a variety of pressure pipelines, especially for Petroleum, Natural gas, City gas, Pipe network, Chemical industry, Electricity, Steel truss, Water, and Gas pipeline.
Specifications of Mill API
Machine Condition Fully New, A-Grade quality
Size As requests
Power Supply 220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment Weight About 30ton-300ton
Dimension 40m–400m (length) x 3.8m-40m (width)
LOADING SIZE Normally need 4-30 x 40' containers
Equipment Color normally Blue/Green/White, or as requests
Place of Origin Zhejiang, China (Mainland)
Packing Standard and careful export packing
As a reliable china roll forming machine factory, we have types of roll forming equipment for sale, if you have needs, please contact us.
