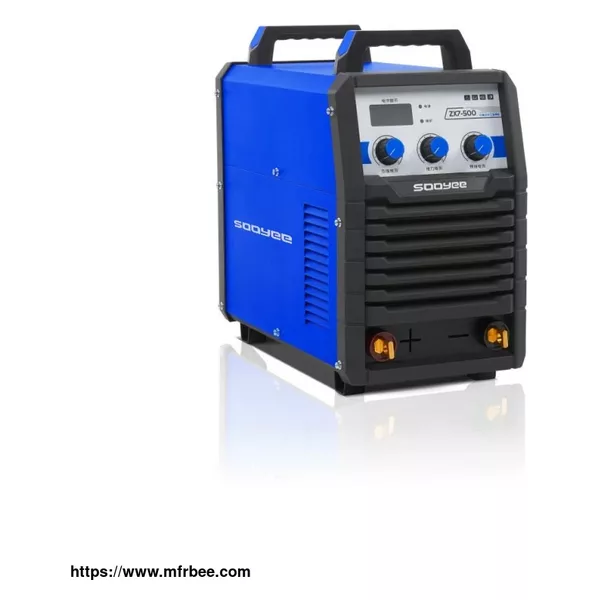

Welding machine ZX7-400A-500A
- Packaging
- N/A
- Delivery
- N/A
Specifications
＞Input voltage: AC3~380±10%, 50/60Hz
＞Input cable: ≥6mm², length≤5m
＞Distribution switch: 63A
＞Output cable: 50mm², length≤30m
＞Ambient temperature: -10℃~+40℃
＞Use environment: The air inlet can not be blocked, no direct sunlight exposure, pay attention to dust
Features of Welding machine ZX7-400A-500A
＞Advanced IGBT inverter technology, fast dynamic response
＞Dual IGBT modules, good device performance and parameter consistency, reliable work
＞Perfect undervoltage, overvoltage and current protection, safe and reliable
＞Accurate digital display current preset, convenient and intuitive operation
＞Acid, alkaline electrode, stainless steel electrode, cast iron electrode can be welded
＞Continuously adjustable arc starting and thrust current, effectively solve the phenomenon of sticking electrode and arc breaking
＞Humanized, beautiful appearance design, more convenient operation
＞Three-proof design of key components, suitable for various harsh environments, stable and reliable operation
Product parameters of Welding machine ZX7-400A-500A
| Product Type | ZX7-400A | ZX7-500A |
| Input Power Source | Three-phase 380V | Three-phase 380V |
| Rated Input Capacity | 12.1KVA | 15.2KVA |
| Inverting Frequency | 20KHZ | 20KHZ |
| No-Load Voltage | 68V | 72V |
| Duly Cycle | 60% | 60% |
| Voltage Range | 20-400A | 20-500A |
| Electorode Diameter | 2.5-5.0mm | 2.5-6.0mm |
| Efficiency | 80% | 80% |
| Insulation Class | Class F | Class F |
| Dimensions | 485X245X420mm | 515X275X470mm |
| Weight | 14.5KG | 16.5KG |
Welding machine external connection diagram
