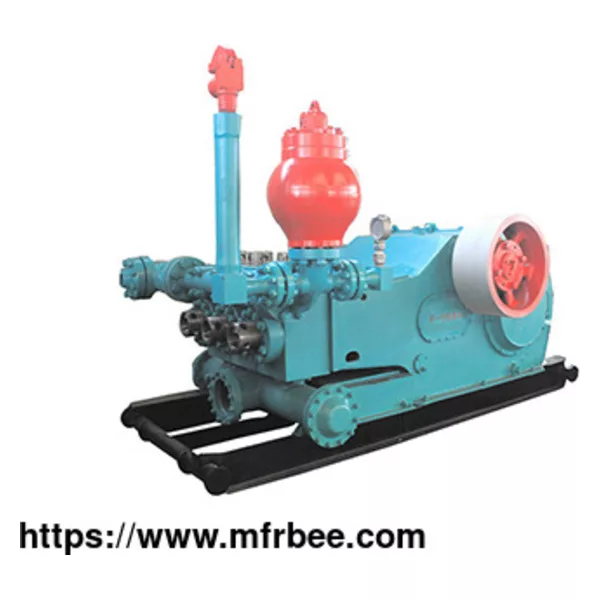

F-1000 Mud Pump
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Features
F 1000 mud pump
F 1000 mud pumps have a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of mud pump fluid end parts greatly.
Forced lubrication combined with splash lubrication to make lubrication effect perfect;
F Series Mud Pumps are manufactured under standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.
The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
Performance of mud pump was greatly improved by durable fluid end; and examination, mud pump repair and mud pump maintenance are easier to make due to its independent structure.
F-1000 mud pump specification
| Model | F-1000 |
| Rated Power(kW/HP) | 746/1000 |
| Type | Triplex Single-Acting |
| Strokes per minute | 140 |
| Stroke Length (mm/in) | 254/10" |
| Max. Liner Dia (mm/in) | 170/6 3/4" |
| Gear Type | Herringbone Gear |
| Valve Pot | API-6# |
| Gear Ratio | 4.207:1 |
| Dia of Suction Inlet(mm/in) | 305/12" |
| Dia of Discharge Outlet | 5 1/8"flange 5000psi |
| Dia. of Pinion Shaft(mm/in) | 196.9(7 3/4) |
| Max Pressure(Mpa/psi) | 34.5/5000 |
| Overall Dimensions(mm/in) | 4267*3167*2580 / 68"*125"*102" |
|
|
