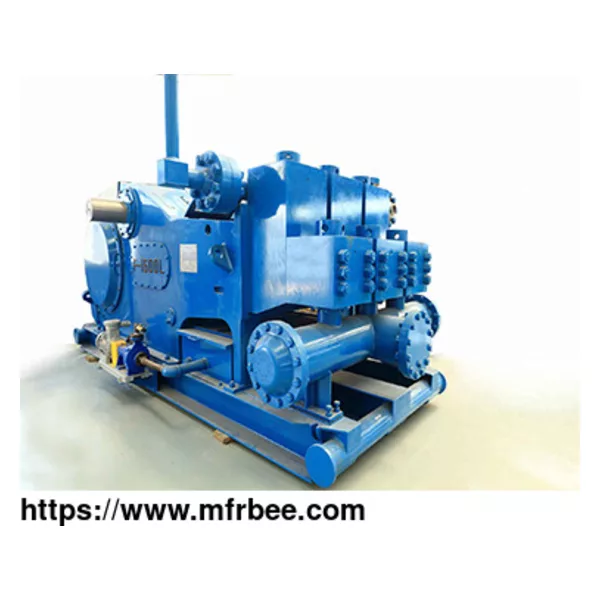

F-1600HL High Pressure Mud Pump

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Features:

F1600HLhigh pressure mud pumphas a max. working pressure of 7,5000PSI and a displacement of 46.5L/S with 6" liner size. It belongs to high pressure pump. This model is the first choice for the medium and deep drilling rig. The F1600 triplex has a max working pressure of 5,000 PSI and a displacement of 46.5L/S with 7"mud pump liner size.

F-1600HL high pressuremud pump liner specifications

Model	F-1600HL
Max. Liner size*stroke	190305(7-1/212)
Stroke Rating r/min	120
Power Rating, kw(HP)	1176(1600)
Gear Type	Herringbone
Gear Ratio	4.31:1
Lubricatiing	Forced and splashing
Discharge Outlet Flange	1300mm(5”) Flange 10000 psi 70MPA
Discharge flange size:	130mm (5-1/8”)
Work pressure	3350 psi (23.1 Mpa)-7500psi (51.7 Mpa)
Valve pots	L type, API 7#
Valve box static pressure test:	77.6Mpa (11200 psi)
Approx. Weight (KG)	32,000KG
Overall dimensions (mm)	520025002000mm
