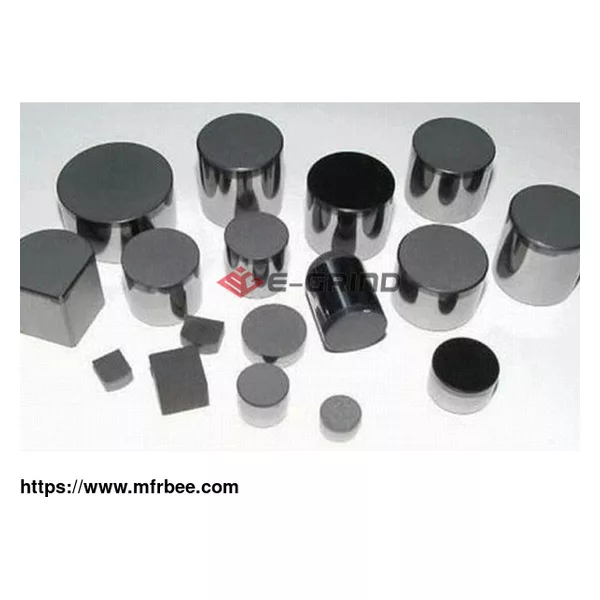

PDC (Polycrystalline Diamond Compact) Cutter

Place Of Origin: Henan

Minimum Order: 1

Packaging: Box

Delivery: 2-7 days

Polycrystalline diamond composite(PDC)

Polycrystalline diamond cutters is made of diamond particles and cemented carbide matrix sintered at 60,000 atmospheres, high temperature and high pressure above 1500 ℃, and has the high hardness of diamond and the high toughness of cemented carbide. The diamond composite sheet has extremely high wear resistance, impact resistance and good thermal stability, and is specially used for oil drilling bits and can also be used for other rock or mining drilling operations.

Customized PDC Diamond

E-Grind can provide a full range of diamond PDC China with diameters ranging from 8mm to 19mm, and can also be customized according to customer needs.

Polycrystalline diamond composite

D+T is generally used to indicate product specifications

C is Diamond chamfer, the standard degree is 45°, 0.3 mm length.

Diamond table (t) thickness is 2.0 mm, 1.5 mm, 1.0mm.

Dimension can be customized according to customer needs

Available Spec for Oil/gas Grade

D\T 16 13 10 8 4

19 * • * * o

16 * • * • o

13 o • * • •

10 o o • • •

8 o o o • •

Available Spec for Mining Grade

D\T 16 13 10 8 4

19 o • * • o

16 o • * • o

13 o * * • •

10 o o • • •

8 o o o • •

Note

• Available

o NA

* Customize

PDC structure

Diamond Table

The uniform micron size distribution, make PDC high bonding force and high density.Various particle sizes can meet customer needs for wear resistance and impact resistance demand.

Interface

We have various interface desgin to ensure optimal combination,

Substrate

E-Grind using 13% and 16% Co carbide substrate as standard specificaiton. Ensure the carbide substrate brazed strength to the drill bit body.

Shaped PDC

Diamond-reinforced composite cutter are formed by sintering diamond particles and cemented carbide matrix at high temperature and pressure, which not only has the high wear resistance of diamond, but also has the high strength of cemented carbide. The products are widely used in roller cone bits, down-the-hole drill bits, picks, crushing machinery and other fields, and are the best substitute for cemented carbide cutter.

The diamond-reinforced composite cutter adopts the transition layer technology between the diamond layer and the cemented carbide layer, which has outstanding impact resistance and ultra-high wear resistance, making it widely used in high-end PDC bits, such as shock-absorbing cutter, Center cutter, gauge cutter, etc.

As a diamond cutters ltd, we have types of pdc cutters for sale, if you have needs, please contact us.

Now the price of abrasive powder is affordable, if you want to buy high quality diamond powders, please leave us a message.
