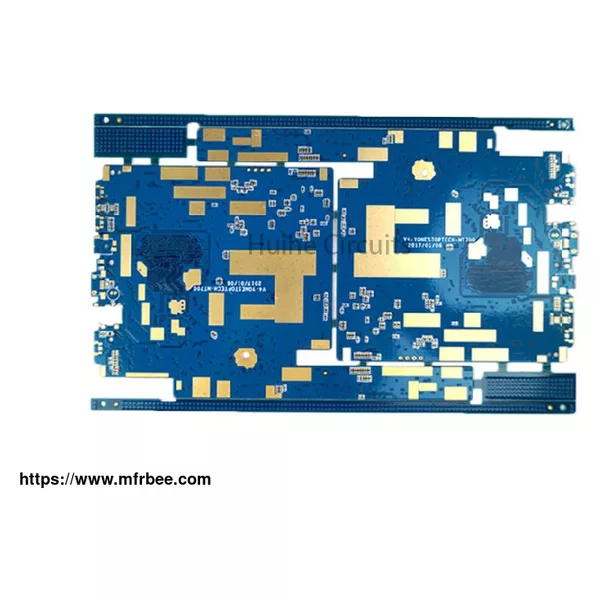

6 Layer ENIG Impedance Control PCB Bare Board

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Number of layers: 6

Surface finish: ENIG

Base material: FR4

Outer Layer W/S: 4/2.5mil

Inner layer W/S: 4.5/4.5mil

Thickness: 1.0mm

Min. hole diameter: 0.2mm

Special process: impedance control

Advantages Of 6 Layer ENIG Impedance Control PCB Bare Board

Own lamination process to convenient production for Multilayer PCB and shorten the lead time.

Jiangxi facility is environmental-friendly approved by the government .

Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.

Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.

Engineers with more than 15 years of experience

Customers located in more than 20 countries, the common choice of 500 high-end companies.

Perfect quality inspection system

Professional R&D team can make all kinds of special boards.

Quick turn, prototype, medium or large batches can be produced to meet the needs of different customers.

Quick response to quotes.

Huihe Circuits is a professional custom pcb maker, we provide bare printed circuit board, bare pcb board, bare pcb, pcb circuit and etc. For more information, please feel free to contact us!

Country: China (Mainland)
Business Type: Manufacturer
Market:
Founded Year:2017
Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
Contact:Huihe Circuits
