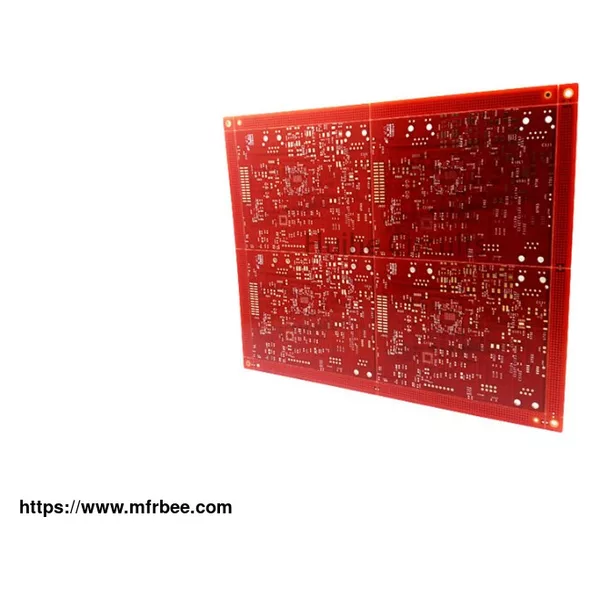

6 Layer ENIG PCB
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Number of layers: 6
Surface finish: ENIG
Base material: FR4
Outer Layer W/S: 4/2mil
Inner layer W/S: 4/3mil
Thickness: 1.6mm
Min. hole diameter: 0.15mm
Advantages Of pcb 6 layer
Own lamination process to convenient production for Multilayer PCB and shorten the lead time.
Jiangxi facility is environmental-friendly approved by the government .
Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.
Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.
Engineers with more than 15 years of experience
Customers located in more than 20 countries, the common choice of 500 high-end companies.
Perfect quality inspection system
Professional R&D team can make all kinds of special boards.
Quick turn, prototype, medium or large batches can be produced to meet the needs of different customers.
Quick response to quotes.
The management level is highly educated, 30% have professional titles and more than ten years of work experience.
High staff stability, low mobility.
UL/ISO9001/SGS/IATF16949/ROHS/ISO1400 certificated.
Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.
Establish an e-commerce system to reduce transaction costs and increase market response speed.
Huihe Circuits is a professional pcb manufacturer, we provide bare printed circuit board, bare pcb board, bare pcb, printed circuit board and etc. For more information, please feel free to contact
us!
