UART TFT LCD Module with Unic View
HomeProductsUART TFT LCD Module
UART LCD Module
Based on Proculus display hardware and software, communications between LCMs and MCU are implemented with only 5 simple serial commands, which greatly reduce the complexity and time-cost.
UART TFT LCD Module with UnicView
2.8-18.5 inchTFTLCD Module with P-CP or RTP touch sreen.
Capacitive Touchscreen / Resistive Touchscreen
Automatic Firmware Database Download
UnicView AD automatically downloads the latest Firmware information upon start-up.
Interface Objects that are not supported by the current selected Firmware are disabled.
One-Click PC LCM Project Download
Projects can be downloaded to the LCM via USB or SD Card. It's as easy as clicking "Download".
Users may choose which files (Images. Configurations. Libraries. etc.) to send to the LCM.
Clean Compilation Reports
All files in the project are neatly arranged in a project-based folder structure.
Any errors or warnings are really available to the user.
Interface Objects present on the project that is not supported by the current selected Firmware are notified as warnings.
Advantages of UART LCD Module
High-quality and reliable Hardware.
Intuitive and frequently updated Software.
Simple and easy-to-learn Communication Protocol.
Short Lead-Time.
Well-trained Support Team.
Cost-effective complete GUI Solution.
FAQ of UART LCD Module
Why does P.BOX are priority to purchase?Why does P.BOX are priority to purchase?
No matter what size are you targeted in, Proculus (one of reliable lcd screen manufacturers) highly recommend customers put 2.8" P-Box Starter kits in the cart at the lowest cost to perform with
your controller including all accessories that you need. Please read the following link for the starter kit:
http://www.proculustech.com/starter-kit.html
How to use UnicView AD?How to use UnicView AD?

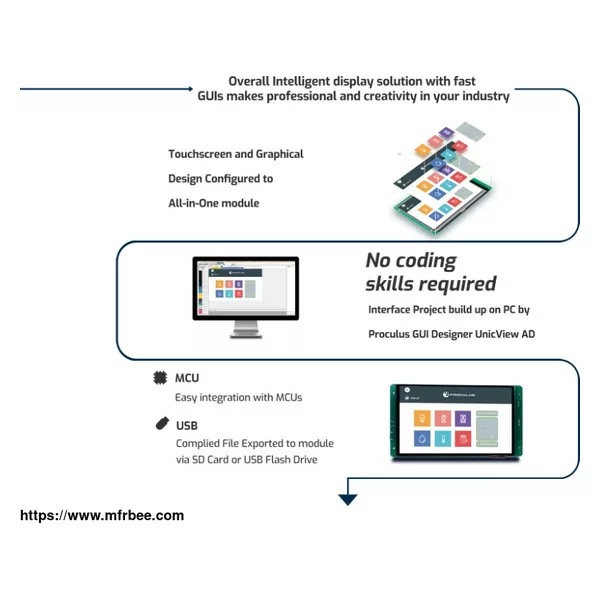

In the first step, the interface project is designed on UnicView AD software, by importing images, laying out the buttons and views visually, and configuring the LCM parameters. In the second step,
the interface project is downloaded into the LCM. In the third step, the LCM is connected to the product's microcontroller, which exchanges data to and from the LCM.
Is Software UnicView AD® free of charge?Is Software UnicView AD® free of charge?
For first-time users, we offer a valid-15days free serial key since the pack's arrival to evaluate. If you need more time to test, $100 USD would be charged however it going to be refunded on
premise that the product step into production.
The RS485 differential line consists of two signals: A, which is low for logic 1, and high for logic 0; B, which is high for logic 1 and low for logic 0.
We also have types of usb lcd module for sale, anything you need, please contact us.
If you want to know more types of china 7 inch tft lcd module, please visit our website.
