T&S Communication TSQS-851HG-xxxC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+SR4 for 100 or 40 Gigabit Ethernet, Infiniband FDR/EDR Applications. This transceiver is a
high-performance module for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate
at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850 nm. The electrical interface uses
a 38 contact edge type connector. The optical interface uses a 12 fiber MTP(MPO) connector.
Features of China 100G QSFP28 AOC

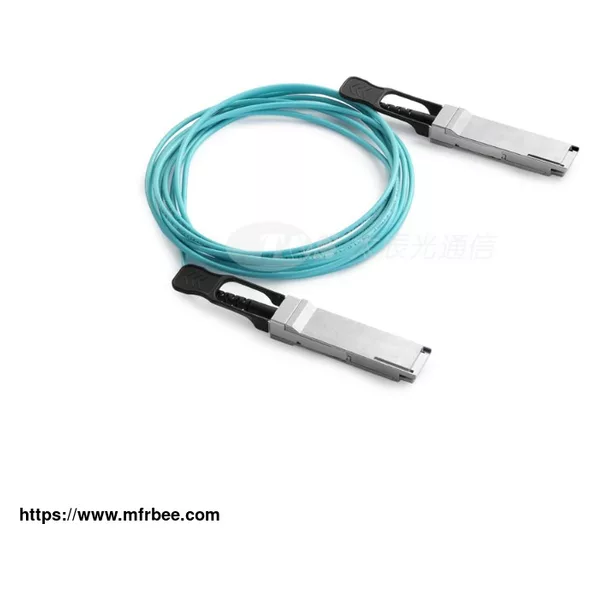

Four-channel full-duplex active optical cable with QSFP28 plugs
Produced by T&S, a professional AOC manufacturer, the 100G QSFP series has multi-rate capability: 10Gb/s and 25Gb/s per channel
Reliable VCSEL array technology using MMF
Hot Pluggable
Power dissipation:<3.5W
Operating case temperature 0℃ to 70℃
RoHS compliant
Applications of 100G QSFP28 AOC
IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4 28G Fiber Channel
Infiniband FDR/EDR
Specifications of 100G QSFP28 AOC
Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Storage Temperature TS -20 85 ℃
Case Operating Temperature TCase 0 70 ℃
Relative Humidity RH 0 85 %
Supply Voltage VCC -0.5 3.6 V
Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Case Operating Temperature TCase 0 - 70 ℃
Humidity RH 5 - 85 -
Supply Voltage VCC 3.13 3.3 3.47 V
Data Rate Per Lane DR - 25.78125 - Gbit/s
Fiber Bend Radius Rb 3 - - cm
Electrical Characteristics
NOTE: The EDR module requires an electrical connector compliant with SFF-8662 or SFF-8672 be used on the host board to guarantee its electrical interface specification. Please check with your
connector supplier
Parameter Symbol Min Typical Max Unit
Supply Voltage VCC 3.15 - 3.45 V
Supply Current ICC - - 1010 mA
Total Power Dissipation1,2 P - - 3.5 W
Transmitter
Differential Input Voltage Vin - - 900 MVP-p
Differential Termination Resistance Mismatch - - - 10 %
Transition Time, 20 to 80% Tr, Tf 10 - ps
Receiver
Differential Output Voltage Vout - - 900 MVP-p
Differential Termination Resistance Mismatch - - - 10 %
Transition Time, 20 to 80% Tr, Tf 9.5 - - ps
Bit Error Rate3 BER - - 10-12 -
Note:
Maximum total power value is specified across the full temperature and voltage range
Settable in various discrete steps via the I2C interface
BER=10-12, PRBS 231-1@25.78125Gbps
