100G QSFP28 BREAKOUT AOC

Minimum Order
1
Packaging
N/A
Delivery
15 Days

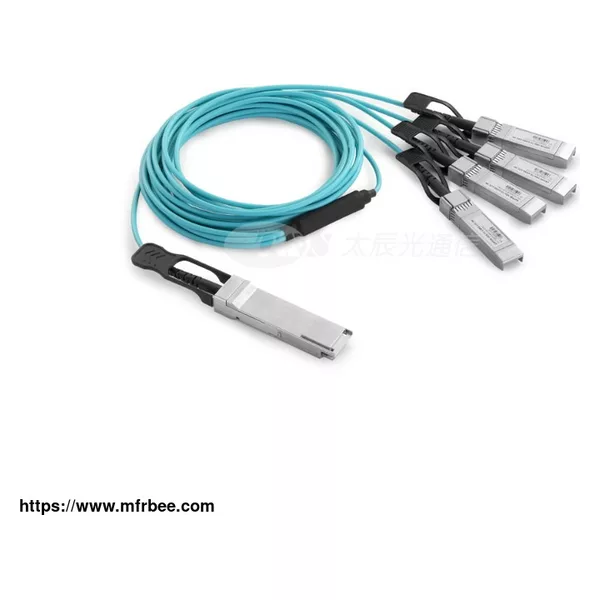

T&S Communication TSQSS-851HG-xxxC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 SR4 for 100G Ethernet applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber without FEC, or 300 m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector. As a professional AOC factory, T&S produces our 100G QSFP28 series with consistently high quality.

Features of 100G QSFP28 Breakout AOC
Electrical interface compliant to SFF-8436 and SFF-8431

850nm VCSEL laser and PIN photo-detector

Built-in digital diagnostic functions

Operating case temperature 0℃ to 70℃

Hot Pluggable

Similar to the other AOC cables produced by T&S, such as our 40G AOC, our 100G breakout AOC cable is also RoHS-compliant


Applications of 100g breakout cable
100GbE and 25GbE break-out applications for Datacom switch and router connections

100G to 4×25G density applications for Datacom and Proprietary protocol applications, Datacenters

Specifications of 100g qsfp28 aoc

Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Storage Temperature TS -20 85 ℃
Relative Humidity RH 0 85 %
Case Operating Temperature TCase 0 70 ℃
Supply Voltage VCC -0.3 3.6 V

Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Case Operating Temperature TCase 0 - 70 ℃
Supply Voltage VCC 3.13 3.3 3.47 V
Supply Current (QSFP28) ICC - - 1000 mA
Supply Current(SFP28) ICC - - 300 mA
Data Rate Per Lane DR - 25.78125 - Gbit/s

Transmitter Specifications
Measurement condition: Channel data rate 25.78125Gbps, VCC=3.3V, PRBS31 pattern, Case operating temperature 0-70℃.
Parameter Symbol Min Typical Max Unit
QSFP28
Center wavelength λc 840 850 860 nm
Differential Input Impedance Zin 90 100 110 Ohm
Differential Input Voltage Vin 300 - 1100 MVP-p
Average Launch Power per Lane PAVG -7.5 -1 +2.5 dBm
Extinct Ratio ER 2.0 - - dB
SFP28
Center wavelength λc 840 850 860 nm
Differential Input Impedance Zin 90 100 110 Ohm
Differential Input Voltage Vin 300 - 1100 MVP-p
Average Launch Power PAVG -7.5 -1 +2.5 dBm
Extinct Ratio ER 2.0 - - dB

Receiver Specifications
Measurement condition: Channel data rate 25.78125Gbps, VCC=3.3V, PRBS31 pattern, Case operating temperature 0-70℃
Parameter Symbol Min Typical Max Unit
QSFP28
Center wavelength λc 840 850 860 nm
Differential Output Impedance Zout 90 100 110 Ohm
Differential Output Voltage Vout 500 - 800 MVP-p
Receiver Overload Pinmax +2.5 - - dBm
Bit Error Rate BER - - 10-12 -
SFP28
Center wavelength λc 840 850 860 nm
Differential Output Impedance Zout 90 100 110 Ohm
Differential Output Voltage Vout 500 - 800 MVP-p
Receiver Overload Pinmax +2.5 - - dBm
Bit Error Rate BER - - 10-12 -
