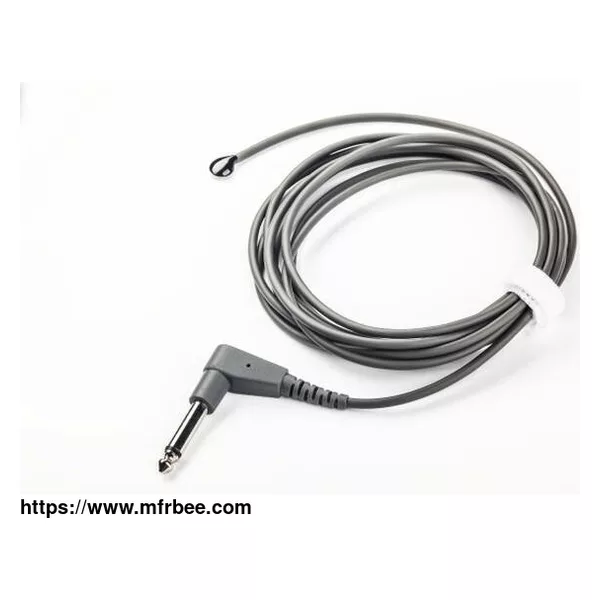

Disposable Medical Body Probe

Specification: TPS180913-21

Details

Material: the medical temperature probe is made of a high-precision medical chip/silicone cable/mono audio plug

Applicable temperature range：-30~45℃

Output signal: analog signal output

Advantages

1. High-precision medical chip

2. Good stability and high reliability

3. Wide resistance range: 2~10KΩ

4. The resistance and B value accuracy can reach 0.1%

5. Small size, sturdy structure, easy for automatic installation

6. Operating temperature range: 0~45℃

7. Fast heat induction and high sensitivity

Application

Our temperature sensor medical device can be used for ICU monitor human body temperature measurement.

General parameters

ResistanceR25℃： 5K 10K 15K 20K 50K 100K 200K

B value(R25/R50) 3380 3950 3470 4200 3977 4100 4200

Tolerance 1% 2% 3% 5%

Note: What is the B value:

A material constant that describes the resistance-temperature relationship. The value of B can reflect the scale of resistance to temperature change between two specific temperatures. As the temperature changes, the resistance value of a product with a large B value under the same conditions changes more, that is to say, it is more sensitive.

As one of the most professional temperature sensor manufacturers, we provide sensor products, temperature probe medical, ntc thermistor and etc. Want to know more? Please contact us.
