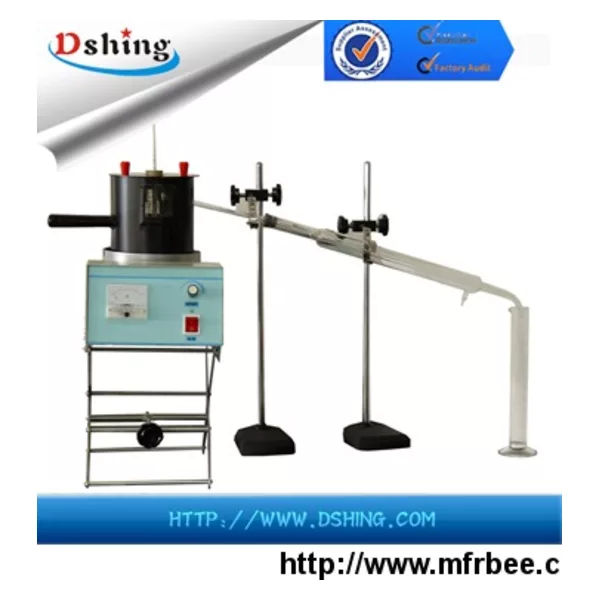

DSHD-255A Liquid Asphalt Distillation Tester

A:Brief description:

　 DSHD-255A Liquid Asphalt Distillation Tester is designed according to the T0632 “Test Methods for Distillation Characteristics of Liquid Asphalt” in the Industry Standard of People’s Republic of China JTJ052 Specification, and Test Methods for Bitumen and Bituminous Mixture for Highway Engineering.

DSHD-255A Liquid Asphalt Distillation Tester is used to determine distillate content in the liquid petroleum asphalt as per T0632.

B: Main technical features:
　1. Power supply: AC 220 V±10%, 50 Hz.
　2. Distillation flask shield: Made by iron sheet, its surface is plated to black, and it is with a wooden handle. There is a gap opposite to the handle to let the branch tube of distillation flask get through. There is a rectangle observation window on the shield of flask. There is transparent mica inserted in the frame of window.
　3. Distillation flask:It is made of hardness glass and can endure a temperature higher than 500 ℃. The diameter of the ball section of the flask is 102±2.0 mm, and the neck of the flask is 25±1.2 mm. The angle between branch tube and flask neck is 75±3 °.
　4. Thermometer: 0～360 ℃, scale division is 1 ℃.
　5. Condensation tube and holder: The Condensation tube is composed of Φ12.5±0.5 glass tube, and it is supported by two holders.
　6. Heating temperature adjustment device: It is composed of heating furnace and silicon control rectifier temperature adjustment circuit case. Its power is 1000 W/220V. The heating speed is adjustable.
　7. Graduated flask: The graduated flask is 100 ml, and scale division is 0.5 ml.
　8. Connection tube: made by thick glass (about 1 mm). Like ox horn. The bending angle is 105°. The inner diameter of larger end is 18 mm and the inner diameter of small end is less than 5 mm.
　9. Electric furnace gasket: It is made by carbonized silicon. Its outer diameter is 105 mm and its inner diameters are 50 mm and 30mm, total two types.
　10. Ambient temperature: -10℃～+35 ℃
　11. Relative humidity: ≤85%
　12. Total power consumption: not more than 1100 W
