UPS Backup Battery
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 4weeks
Specifications

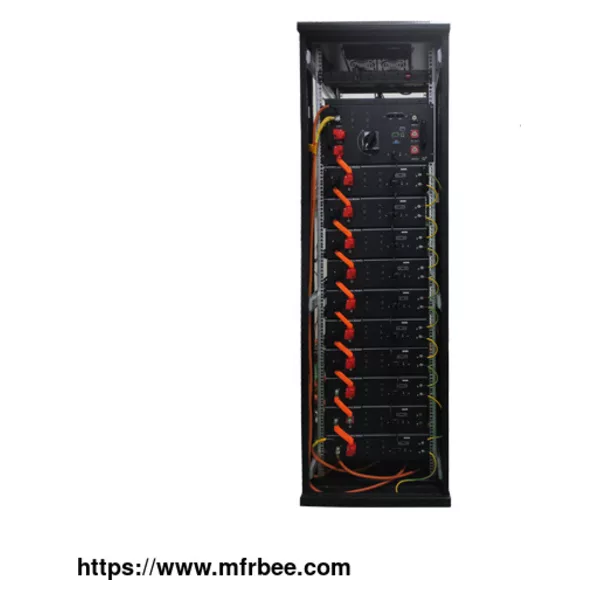

Product Introduction of 512V-100Ah UPS Battery
The ACE Encore series Li-ion UPS batteries are developed for rack mounted. This series integrates ACE high energy density and high-rate cells with dedicated battery management system (BMS) to
provide system reliability and improved performance. This series is designed as a perfect match for power backup of data centers and offices,
especially under high-rate discharge circumstances.
Product Features of 512V-ups battery 100ah
Integrated with fully-automatically produced LFP prismatic 50 Ah cells, ensuring excellent consistency and life span
Specially designed for three wire and two wire UPS system application
BMS control and protection double redundancy: contactor control, shunt trip of MCCB
Short circuit protection double redundancy: circuit breaker protection, molded case circuit breaker magnetic tripping
Dual redundancy of auxiliary source reduces the risk of AC power interruption
Support wide DC voltage range configuration, compatible with UPS of high and low voltage platform
Directional explosion-proof valve design, which can effectively avoid cell failure and ensure high safety
Comprehensive thermal simulation and testing to ensure the safety of each cell in the case of large current discharge
Voltage, current, temperature, SOH, SOC real-time detection
Application Scenarios
Data centers
Distributed data centers
Bank data centers
Specifications of 512V-UPS 100Ah Battery
Project Item Cell Module System(Module 8/9/10/11/12)
Basic ParameterBasic Parameters Configure / 2P16S 2P128S 2P144S 2P160S 2P176S 2P192S
Rated Voltage(V) 3.2 51.2 410 461 512 563 614
Voltage Range(V) 2.5-3.6 40-57.6 320-461 360-518 400-576 400-634 480-691
Rated Capacity(Ah) 50 100 100
Rated Energy (KWh) 0.16 5.12 41 46.1 51.2 56.3 61.4
Max Power（KW) 0.8 25.6 205 230.5 256 281.5 307
Size (Min) 26*148*129
W*D*H 438*600*130
W*D*H 600*800*2000
W*D*H
Weight(Kg) 1.12 50 600 650 700 750 800
Performance Perameters Cell Chemistry System LFP
Charging Current 1C (100A) max,suggest 30A
Discharge Power
(based on standard 10 module configuration) 10min: 205KW
15min: 180KW
Discharge Cut Off Voltage Cell: 2.3V
System: 408V (cell: 2.55V)
Charging Cut Off Voltage Cell: 3.6V
System: 568V (cell: 2.55V)
certification Cell: UL1973 / IEC62619 / UL9540A
System: IEC62619 / UL1973 / UL9540A / IEC62477-1 / IEC61000-6-2&4
Function Parameters Support UPS DC Line System Two line system / Three line system
Communication Mode CANUBS; RS485
Auto Star When the power grid is restored, the battery system will start automatically
Black Star When the power grid is cut off, the battery system supports the first start-up
Environmental Parameters Core Algorithm And Control Power prediction / Calculation of remaining standby time / Exit of single fault cabinet
Working Environment Temperature 0-40°C, Recommended temperature 25±5°C
Working Environment Humidity ≦95%RH; non-condensing
Altitude ≦2000m No reduction; Max support 4000m
As one of the most reliable medical battery manufacturers, Ace provides battery 48v 1000ah, battery cell, lithium ion battery, li ion pouch cell and etc. Want to know more? Please contact us.
