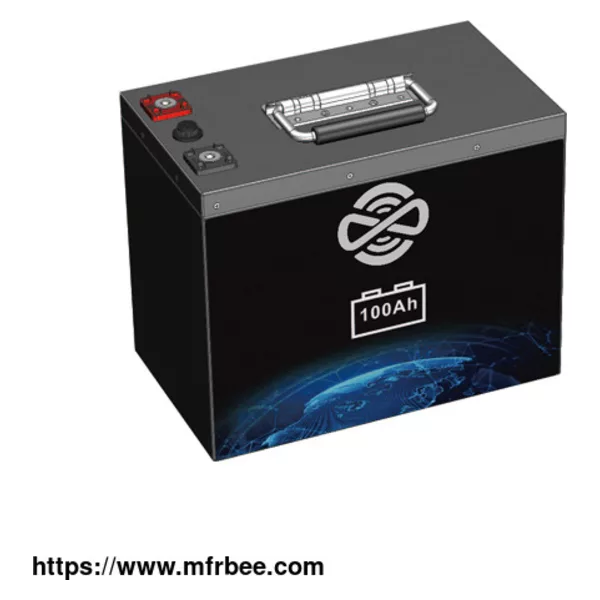

Aerial Work Platform Li-ion Battery

Product Introduction of Aerial Work Platform-24V80Ah 100Ah 150Ah 200Ah 48V150Ah

ACE is an industry leading manufacturer focusing on R&D, production and sales of lithium-ion cell and custom battery packs, serving diversified industries covering e-mobility to various industrial applications. With 20 years' experience in the industry, we have accumulated profound engineering capabilities and exported products to more than 30 countries. ACE lithium batteries can be used in a variety of MEWP applications, offers a range of advanced safety, environmental, Intelligent, run time and lifetime from its superior cell and battery design to its intelligent. ACE lithium batteries deliver outstanding return on investment over time.

Product Features of Aerial Work Platform-24V80Ah 100Ah 150Ah 200Ah 48V150Ah

Automotive Standard Safety Systems: Anti-thermal structural design and microprocessor-controlled safety system protection, like Over Voltage/Under Voltage/Over Current/Over Temperature/Short Circuit.

CAN Communication with J1939: Supports J1939 communication protocol to read State of Charge (SOC), voltage, current, temperature and other information of the battery.

Superior BMS Performance: High accurate voltage / current measuring, high accurate fuel gauge calculation with temperature compensation.

Flexible Parallel Connection: Support parallel connection and allow batteries different capacity/SOC to be connected in parallel. Intelligently balance the SoC of different batteries in parallel connections.

Integrated Heating Function: Support heating function to warm up the battery at low temperature for charging and discharging.

High Precision Cell Detection: The battery can detect low current leakage from the MEWP system, and turn it off automatically to save power.

Long Cycle Life: More than 3000 cycles.

Certification: IEC62620, IEC62619, UL2580, UL2271, UN38.3, UL etc.

Specifications of Aerial Work Platform-24V80Ah 100Ah 150Ah 200Ah 48V150Ah

Model ACEAWP24-80 ACEAWP24-100 ACEAWP24-150 ACEAWP24-200 ACEAWP48-150

Rated Voltage [V] 25.6 25.6 25.6 25.6 51.2

Rated Capacity [Ah] 80 100 150 200 150

Total Energy [Wh] 2048 2560 3840 5120 7680

Charge Voltage [V] 28.4 28.4 28.4 28.4 56

Max. Charge Current [A] 35 50 75 100 75

EOD Voltage [V] 20 20 20 20 40

Continuous Discharge current [A] 138 100 150 180 200

Peak Discharge current [A] 150A/60s 200A/3min 250A/3min 270A/2min 500A/2min

Dimensions [L*W*H, mm] 306*182*245 263*333*196 334*377*196 646*367*200 718*259*385

Weight [Kg] 18 30 40 57.4 78

IP Grade IP67

Operating Temperature -20°C to +50°C

Relative Humidity 0 ~ 95%RH

Communication Port CAN

Comparison between lithium battery and AGM battery

AWP Type ACE Lithium Battery AGM Battery

Battery Capacity Weight(Kg) Battery Capacity Weight(Kg)

Scissor Lifts 1 x AWP24-80 24V80Ah 31.8 2 x 31-AGM 24V100Ah 60

2 x AWP24-80 24V160Ah 63.6 4 x T105 24V225Ah 112

2 x AWP24-100 24V200Ah 60 4 x T145 24V260Ah 132

1 x AWP24-200 24V200Ah 57.4 2 x T1275 24V300Ah 78

Boom Lifts 2 x AWP48-150 48V300Ah 156 4 x L16P 48V420Ah 208

As one of the most reliable lifepo4 battery manufacturers china, Ace provides electric scissor lift batteries, scissor lift battery, aerial work platform battery, aerial lift battery, arial plataform app, scissor lift batteries for sale, cylindrical cell battery and etc. Want to know scissor lift batteries price or more? Please contact us.
