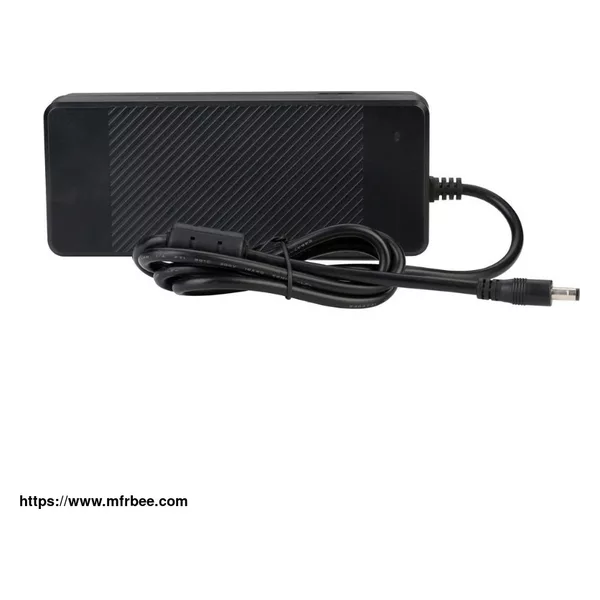

180W 36V 4A Battery Charger
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
180W 36V 4A Battery Charger
Typical output: 36V 4A battery charger
Fully auto 4 stages charging process by MCU controller
4 LED indicate the battery capacity from 25%~100%
Worldwide AC input 100V-240V
Charging stage: Small current pr-charge ; constant current charging; Constant voltage charging
The Specifications Of 180W 36V 4A Battery Charger
Charger Model AC Input Voltage Battery Voltage Max Voltage(V) Max Current (A)
AP-PN180CH01460120 100-240 12 14.6 12
AP-PN180CH02920060 100-240 24 29.2 6
AP-PN180CH04200040 100-240 36 42 4
AP-PN180CH05460030 100-240 48 54.6 3
AP-PN180CH01200120 100-240 12 14.7 12
AP-PN180CH02400060 100-240 24 29.4 6
AP-PN180CH03600040 100-240 36 42 4
AP-PN180CH04800030 100-240 48 58.8 3
INPUT AC Input Voltage Range 100V ~ 240V
AC Input Frequency 45~65HZ
AC Power Factor Correction ≥0.98
OUTPUT Output Voltage Range 12~60V
Output Power Range 12A（Max）
VIBRATION 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes
DIMENSIONS(mm) (L)190х(W)80х(H)42
Protections Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection
CERTIFICATIONS CE ROHS
PACKING DETAILS 0.54kg/pcs
24pcs/Carton
Carton size: 470*365*190
