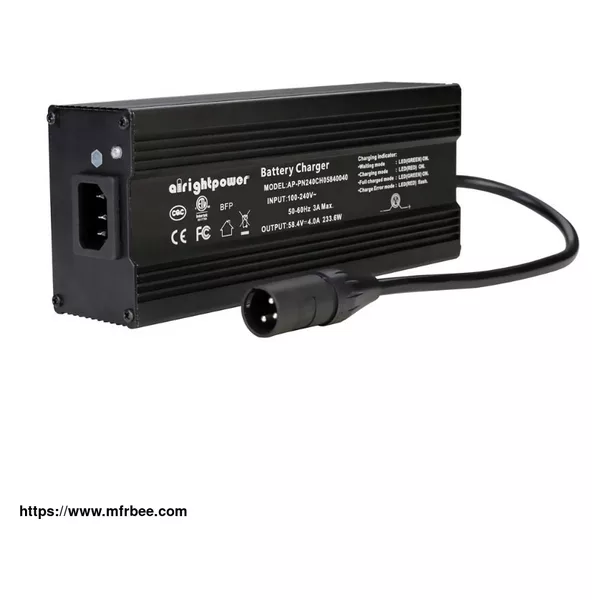

240W 36V 6A Battery Charger
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
240W 36V 6A Battery Charger
Typical output: 36V 6A battery charger
Fully auto 4 stages charging process by MCU controller
4 LED indicate the battery capacity from 25%~100%
Worldwide AC input 100V-240V
Charging stage: Small current pr-charge; constant current charging; Constant voltage charging
The Specifications Of 240W 36V 6A Battery Charger
Charger Model AC Input Voltage Battery Voltage Max Voltage(V) Max Current (A)
AP-PN240CH01460160 100-240 12 14.6 16
AP-PN240CH02920080 100-240 24 29.2 8
AP-PN240CH04200060 100-240 36 42 6
AP-PN240CH05460040 100-240 48 54.6 4
AP-PN240CH01200160 100-240 12 14.7 16
AP-PN240CH02400080 100-240 24 29.4 8
AP-PN240CH03600060 100-240 36 44.1 6
AP-PN240CH04800040 100-240 48 58.8 4
INPUT AC Input Voltage Range 100V ~ 240V
AC Input Frequency 45~65HZ
AC Power Factor Correction ≥0.98
OUTPUT Output Voltage Range 12~60V
Output Power Range 16A（Max）
VIBRATION 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes
DIMENSIONS(mm) (L) 203х (W) 81х (H) 47.5
Protections Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection
CERTIFICATIONS CE ROHS
PACKING DETAILS 1.2kg/pcs
1pcs/Carton
Carton size: 203*81*47.5mm
