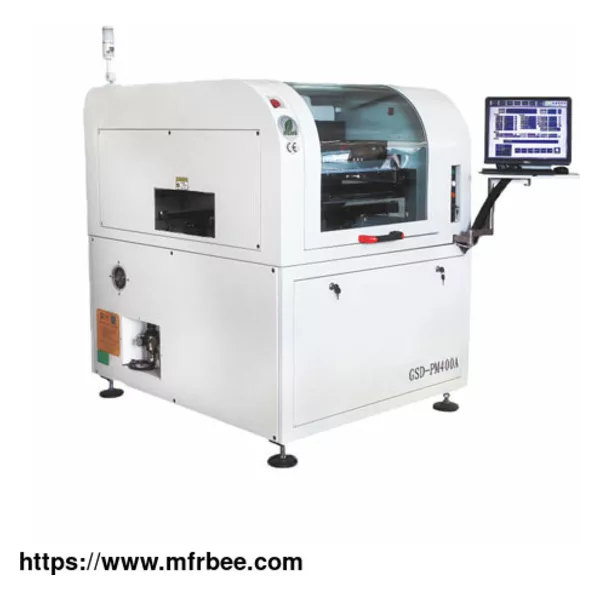

About Full-automatic Solder Printer PM400A

This automatic solder paste printer is the latest release of our printer. It features the latest machine vision recognition system, adopting highly precise servo motion control to achieve high speed and high accuracy pattern matching. With a core cycle time below 8.5 seconds, our machine can fulfill any high quality and productive solder paste printing requirement. This kind of automatic stencil printer is fully computerized; using Window XP OS with powerful software control features. Parameters such as printing height, pressure, sequence, and speed; stencil cleaning cycle are all controlled through user-friendly software.

Specifications of Full-automatic Solder Printer PM400A

Model PM400A

Frame Size Min. 370x470 mm

Frame Size Max. 737×737 mm

PCB Size Min. 50×50 mm

PCB Size Max. 400×340 mm

PCB Thickness range 0.4~6 mm

PCB PCB Warp Degree Max.1%(Diagonal)

Support System Method Magnetic pin, vacuum block

Clamp System Method Vacuum, side clamp, top clamp

Table Adjustment Ranges- X:±3mm; Y:±6mm; Q:±2°

Conveyor Speed Max 1500mm/s, user edit

Conveyor Height 900±40mm

Conveyor Direction Soft control L—*R, R—*L,

L—*L,R—*R

Squeegee Pressure 0~15Kg (Program control)

Standard machine Include SPC

(SQG Pressure Check)

Squeegee Speed 6~200mm/s

Squeegee Angle 60°/ 55°/45°

Squeegee Type Stainless steel(std),plastic

Cleaning System Dry/ Wet/ Vacuum(User edit)

Repeat Positioning Accuracy ±0.01mm

Printing Accuracy ±0.025mm

Cycle Time <8.5s (exclude printing & Cleaning time and Camera)

Air Required 4~6Kgf/cm2

Power Input AC 220V ±10% 50/60Hz, Single phase

Power Consumption 3KW

Control Method PC control

Machine Dimensions 1220(L)×1355(W)×1500(H)mm

Weight Approximately 1000kg
