Nozzle
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- carton
- Delivery
- 3 Days
Specifications

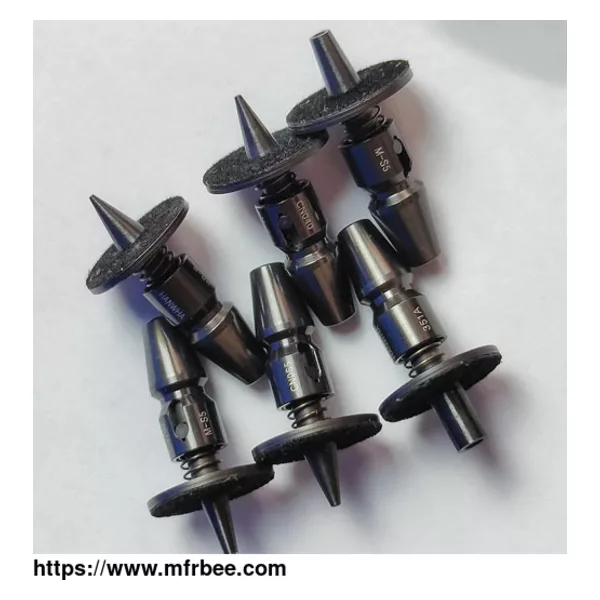

SMD Nozzle
The pick and place vacuum nozzle is the key part of SMT to attach and release the absorbed components. It mainly uses the adsorption of vacuum to absorb the components and uses air blowing to put
the absorbed components on the coordinate position of the circuit board.
Size of smt small nozzle
In order to assure placement accuracy, please select electronic smt nozzles according to the shape and size of components.
Table 1-1 Nozzle
Type Regular Regular Regular Regular Regular Regular Regular Regular
Model CN030 CN040 CN065 CN100 CN140 CN220 CN400 CN750
Illustration
External Diameter 0.6mm 0.8mm 1.0mm 1.8mm 2.0mm 3.6mm 5.0mm 9.0mm
Inner Diameter 0.3mm 0.4mm 0.7mm 1.0mm 1.4mm 2.2mm 4mm 7.5mm
Type Special Special Special Special Special Special Special
Model YX01 YX02 YX03 YX05 YX06 YX07 -
Illustration
Shape
Reference of nozzle selection
Table 1-2 Size comparison of nozzles
Model Recommendation (Imperial System)
CN030 0201
CN040 0402
CN065 0402, 0603, etc.
CN100 0805, diode,1206, 1210, etc.
CN140 1206,1210,1812,2010, SOT23, 5050, etc.
CN220 SOP series ICs, SOT89, SOT223, SOT252, etc.
CN400 ICs from 5 to 12mm
CN750 IC bigger than 12mm
YX01 3528 Soft surface LED
YX02 High power dome shape LED
YX03 IC/BGA from 11mm to 17mm
YX05 4148 round diode
YX06 3535 ball shape LED (Spherical height 1.4mm, overall height 1.9mm）
YX07 5050 ball shape LED (Length 5mm, Width 5mm, Height 3.02mm）
There are many smt pick and place machine manufacturers in China, but we are one of the best choices for you.
Hangzhou TronStol Technology Co., Ltd., was established in 2010 (the company name has been updated in 2019). It is a high-tech enterprise located in Hangzhou. TronStol focuses on pick & place
machines and it also helps to provide machine parts like reflow oven, stencil printer, and conveyor to satisfy customer's needs of a completed SMT production line. We are SMT One-Stop manufacturer
and provider.
