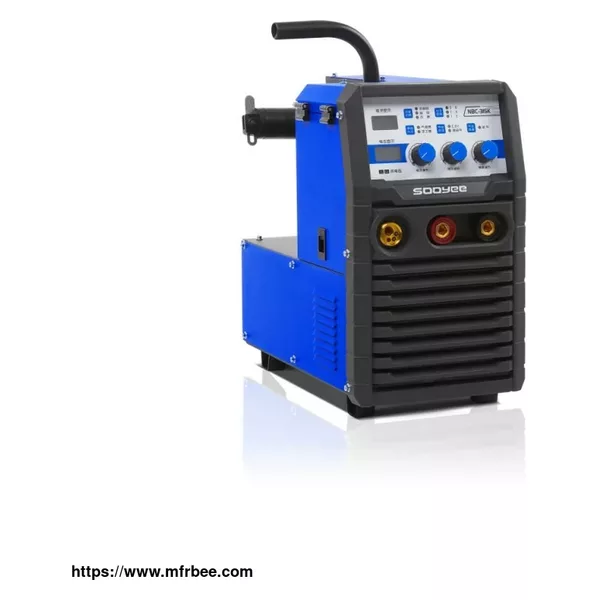

Welding machine NBC-315K

Installation Precautions
＞Input voltage: AC2~180V-420V±10%, 3-380V±10%, 50/60Hz, Can be connected to a generator
＞Input cable: ≥4.0mm², length≤5m
＞Distribution switch: 63A
＞Output cable: 35mm², Welding torch length≤5m
＞Ambient temperature: -10℃~+40℃
＞Use environment: The air inlet can not be blocked, no direct sunlight exposure, pay attention to dust

Features of Welding machine NBC-315K

＞Integrated gas shielded welding machine

＞Automatic identification of power supply voltage, suitable for single-phase 220V, three-phase 380V

＞Advanced single-tube IGBT inverter technology, small welding spatter, beautiful welding seam

＞Perfect undervoltage, overvoltage, overheating and overcurrent protection, safe and reliable

＞Accurate digital display of current and voltage presets, easy and intuitive operation

＞High-voltage wire feeding to start the arc, the arc does not burst, and the arc ends to remove the ball

＞Humanized, beautiful appearance design, more convenient operation

＞Three-proof design for key components, suitable for various harsh environments, stable and reliable operation

＞Suitable for short-distance test welding, suitable for processing and manufacturing, iron processing and other industries

Product parameters of Welding machine NBC-315K

Product Type	NBC-315K
Input Power Source	Three-phase 220V/380V
Rated Input Capacity	13KVA
Inverting Frequency	28KHZ
No-Load Voltage	54V
Duly Cycle	60%
Voltage Range	14-32V
Electrode Diameter	0.8-1.0mm
Electrode Diameter	2.5-3.2mm
Efficiency	80%
Insulation Class	Class F
Dimensions	485X275X465mm
Weight	19KG

Welding machine external connection diagram
