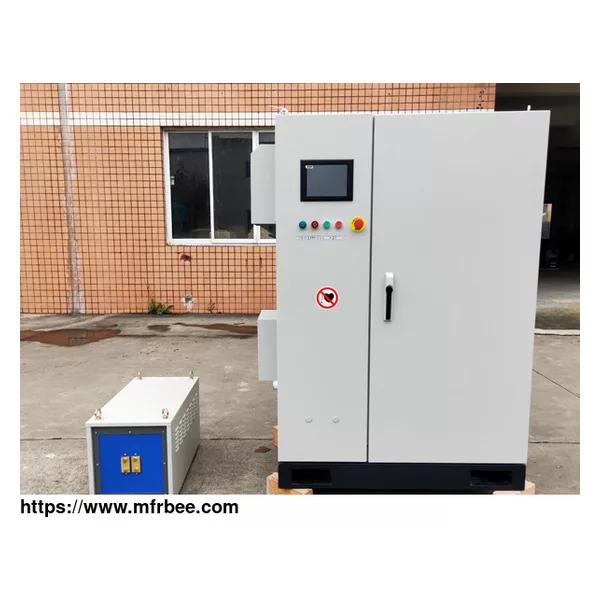

SWP-MT 15KHz-30KHz Medium Frequency Induction Heating Machine

SWP series are JKZ's newly designed and manufactured induction heating power supplies.

The MT version of SWP series equipment uses IGBT as the core component, and its frequency range is from 15KHZ to 30KHz.

The maximum single machine power of this ultra high frequency induction heating machine is designed up to 600KW. It adopts the latest full digital control circuit and touch screen.

The operating system integrates a more powerful condition monitoring system with reliable and stable wiring and simple maintenance. The equipment can be equipped with a variety of remote control methods, thus greatly reducing the difficulty of automatic control.

Moreover, SWP-MT can also run fully automatically under the control of external systems such as PLC. Its optimized main circuit transformer size is reduced by 10% compared to the previous generation, and it is suitable for induction forging and induction hardening applications.

Specifications of SWP-MT Medium Frequency Induction Heating Machine

Model SWP-25MT SWP-40MT SWP-50MT SWP-65MT SWP-80MT SWP-100MT SWP-120MT SWP-160MT SWP-200MT SWP-250MT SWP-300MT SWP-350MT SWP-400MT SWP-600MT

Input Voltage AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V AC 3P380V

Input Current AC Current (A) 38 60 76 100 120 150 182 243 303 380 456 530 607 910

Inverter Output DC Current(A) 50 80 100 130 160 200 240 320 400 500 600 700 800 1200

Output Power(KW) 25 40 50 65 80 100 120 160 200 250 300 350 400 600

Working Frequency（KHZ） 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz 15KHz-30KHz

JKZ is a professional induction heater manufacturer, we provide induction heating power supply, induction heating unit, swp 300, etc. Contact us to buy induction heating products .
