Pot Magnets
Product Quick Detail
- FOB Price
- USD $100.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Mounting Pot Magnets & Cup Magnets Wholesale
As one of the most professional pot magnets wholesale manufacturers, we offer an extensive range of strong mounting pot magnets, also called cup magnets, from small pot magnets lifting 400g up to
large pot magnets lifting up to 1000kg. Our mounting magnets powerful exist in a wide range of diameters and heights. We actually offer far more sizes and pull forces across the range than shown on
this site – if you cannot see a pot magnet of the right size or performance, please contact us for our complete brochure range.
Pot magnet, cup magnets, mounting magnets, magnetic holders, stainless steel magnetic hooks, round-based magnets, mountable magnets, shallow pot magnets, rubber coated magnets – these are all
examples of super-strong adhesive force pot magnets that pot magnetic products suppliers can supply.
Pot Magnets Without Bore
Coating one surface of the magnet with an iron sheet means that the magnetism of the coated surface is shielded and the magnetic lines are guided to the other surface so that the magnetic force of
the other surfaces is strengthened. For some magnet applications, only the magnetic force of one side is needed, while the other side of the magnetic force could cause interference; in some
applications, only one side of the magnet can be used, and the other side not used, which is not essential. This can lower the cost and savings of the amount of magnetic material used.
As one of the most professional wholesale pot magnet supplier from China, our pot Magnets without bore are strong flat circle magnets. They are flat, round magnets and only one side have magnetism;
they are widely used in moon cake boxes, mobile phone boxes, suitcases, leather, etc.
Leyuan has different types of flat pot magnets for sale, such as powerful flat magnets, long flat magnets, and strong round flat magnets. If you want to buy flat magnets, please contact Leyuan or
leave a message through our website.
Pot Magnets With Bore
These neodymium pot magnets with countersunk holes have only one surface that has strong magnetism; the other surface of the neodymium pot magnets just has very weak magnetism.
Leyuan countersunk neodymium magnets have excellent holding forces thanks to the use of anisotropic neodymium (NdFeB) magnets. The maximum working temperature of these types is up to 80°C, and the
steel body is galvanized. These types are used in applications where high holding forces and small dimensions are required.
Application: magnet source round base magnets can be inserted into different instruments, machines, and tools. These mountable magnets can be used effectively as auxiliary instruments during
transport, clamping, mounting, lifting, welding, separation, etc. The best holding force is reached at full contact of the magnetic face with the ground ferromagnetic surface. Force is vertical to
the base (air gap = 0 mm). Small cracks on the magnet or steel pot do not have any influence as to the functionality, lifetime, and holding force of the pot magnet.

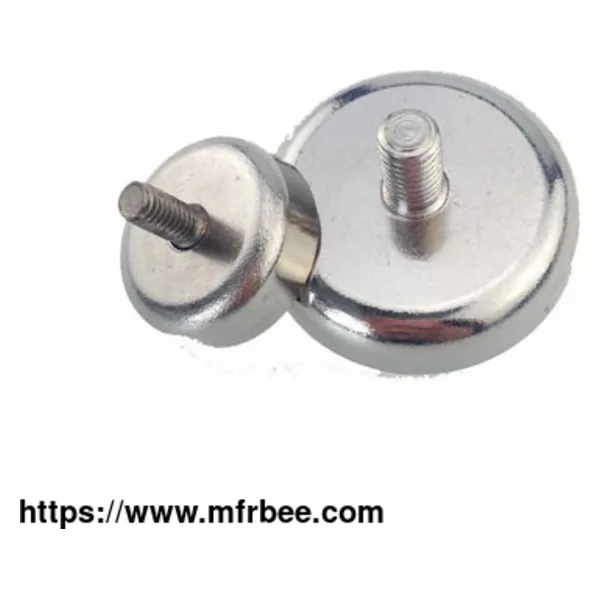

Pot Magnets Threaded
These pot magnets with threaded stud have a metric internal thread and can be fastened with objects with an external thread. We can also provide these magnets with a rubber coating.
The magnets are embedded in a steel pot. The steel pot increases the adhesive force of the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or
if the steel plate is thin, painted, or rough, you can strain it much less.
Threaded neodymium cup magnets are made of a powerful Neodymium magnet sunken into a steel shell meaning that the north pole is located at the center of the magnetic face and the south pole is
located around the outer edge of it. The steel pot increases the adhesive force of the threaded neodymium magnets, giving them an incredible hold for their size. An added advantage of pot magnets
is that they are resistant to chipping or cracking following constant impact by a steel surface.
Pot Magnets With Hook
Pot Magnets with Hook – High-power, super-strong Neodymium clamping magnets with removable hooks are ideal for holding portable lighting to steelwork, holding cables off of the floor on building
sites and for providing a temporary or permanent hanging point on any steel surface. The small magnetic hooks are often used in supermarkets to hold promotional signs that are suspended on wires
attached to the magnets which are attracted and held to metal ceilings.
These magnets are only magnetic on their bases and because the ultra-strong neodymium magnet is secured inside a strong steel shell, they can be continually clamped onto steel surfaces without
cracking or chipping.
Hanging posters and banners from ceilings is made easier with our extensive range of hook magnets, such as extra strong magnetic hooks, rare earth magnet hooks, and powerful magnetic hooks. In high
and expansive interior spaces such as supermarkets, exhibition areas, large DIY stores and even car ferries and cruise ships, hanging banners and posters provide an excellent medium for promotional
messages and customer information to be provided.
Securing changeable overhead signs to the metal structure of ceilings or roofs using traditional materials can sometimes be a headache – but not with our range of powerful circular holding magnets.
Size for size, super strong mounting magnets give exceptional lifting power at prices that compare favorably with other alternatives, so the solution they provide is a cosmetic, versatile, and
permanent one for changeable displays.
Pot Magnets Rubber Coated
Pot Magnets Rubber-Coated – These rubber coated neodymium pot magnets have an external thread. A strong Neodymium magnet is embedded in a steel pot. The steel pot increases the adhesive force of
the magnet on direct contact with a thick iron surface. If there is no direct contact with the counterpart, or if the steel plate is thin, painted or rough, then the pot magnet will be much less
strained. Leyuan offers qualified rubber coated/covered pot magnets for sale.
As one of the professional pot magnets suppliers, we offer qualified rubber coated magnets for sale. Our rubber coated pot magnets mainly have two advantages.
Shear Force: the indicated adhesive force is measured perpendicularly to the surface to which the magnet should stick. It takes a lot less strength to move the magnet sideways. Therefore, rubber
coated pot magnets should be less stained on a wall as opposed to when they are used from the ceiling.
Magnetic Properties: rubber coated super magnets have super-strong magnetic forces and intrinsic coercive force. Rubberised neodymium magnets are good in ambient temperatures with high
anti-corrosion abilities and stable performance.
As one oft the most experienced magnetic assembly manufacturers, We provide magnetic products, magnetic grid for customers and etc. Want to know more? contact us.
