2D Fiber Bundle

Complementary to single mode fiber bundle, 2-D tapered fiber optic cable bundle uses flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement.

Features of Fiber Bundle

Arbitrary pattern

Customer determined core pitch

Pitch accuracy<5um

Fiber type: SM/MM/PM

Compact Design

Customized solutions

How It Works

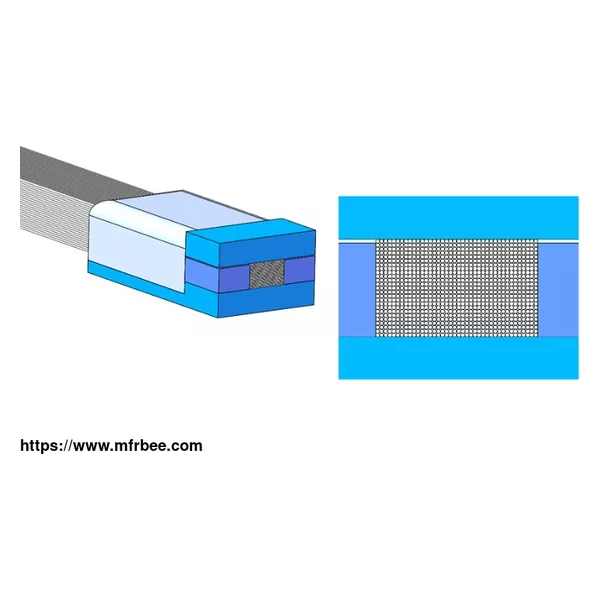

2-D tapered fiber bundle , or fiber bundle optics, uses flat-bottom groove and lid to stack multiple fibers tightly together in a rectangular or circle arrangement. In bundled fibers, the core distance of the fiber is usually determined by the fiber diameter, so once the type of the bundled fiber is determined, the core distance of the fiber is fixed as well. To achieve smaller core pitch, MEISU has its own corroding technique to reduce the existing fiber diameter to any size.

MEISU is a fiber optic switches manufacturer. We provide optic switch, multimode fiber optic switch, pm fiber assemblies and etc. Want to know more, contact us.
