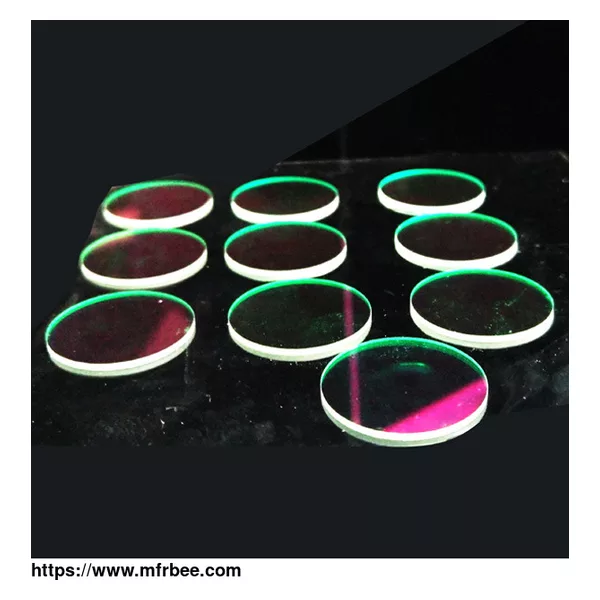

Cut Off Filter

FOB Price: USD $200.00 / Piece

Minimum Order: 1

Packaging: N/A

Delivery: 2-4 Days

Infrared cut filter is the use of precision optical coating technology on optical substrate plating alternately high and low refractive index of optical film, achieve high visible light area (400-630 nm), near infrared (700-1100 nm) as optical filter, mainly used in mobile phone cameras, computer are photographed a built-in camera, car camera digital imaging field, is used to eliminate the influence on CCD/CMOS imaging infrared light.By imaging system with IR cutoff filter, block the part of the interference imaging quality of infrared light, can make the image more in line with the human eye made by the best feeling.

Description Of Cut Off Filter

Infrared cut filter is the use of precision optical coating technology on optical substrate plating alternately high and low refractive index of optical film, achieve high visible light area (400-630 nm), near infrared (700-1100 nm) as optical filter glass, mainly used in mobile phone cameras, computer are photographed a built-in camera, car camera digital imaging field, is used to eliminate the influence on CCD/CMOS imaging infrared light.By imaging system with infrared end filter, block the part of the interference imaging quality of infrared light, can make the image more in line with the human eye made by the best feeling.

Specifications Of Cut Off Filters

Material: Optical Glass

Dimension:80mmx80mmx.03mm or customized size

Cut-off Wavelength Specification

630nm Tavg>90%@400-580nm,T=50%@630±10nm,Tavg<3%@680-1050nm

635nm Tavg>90%@420-590nm,T=50%@635±10nm,Tavg<3%@680-1050nm

645nm Tavg>90%@420-600nm,T=50%@645±10nm,Tavg<3%@700-1050nm

650nm Tavg>90%@420-600nm,T=50%@650±10nm,Tavg<3%@700-1050nm

680nm Tavg>90%@420-630nm,T=50%@680±10nm,Tavg<3%@730-1100nm

690nm Tavg>90%@420-640nm,T=50%@690±10nm,Tavg<3%@740-1100nm

700nm Tavg>90%@420-650nm,T=50%@700±10nm,Tavg<3%@750-1100nm

705nm Tavg>90%@420-650nm,T=50%@705±10nm,Tavg<3%@750-1100nm

Ecoptik is a professional optical components companies, we provide optical element, brd optical and etc. Want to know more? Please contact us.
