INSERT MOLDING

Insert Molding is a process of inserting bolt, nut, electrode piece and other metal components into plastic parts. Place the components in mould in advance, the insert component will be tightly and stably assembled with plastic product after injection. Now, it’s widely used in electric, appliance, pipe fitting, hand tool and more industries.

In addition, if using a plastic part as insert component, insert molding process could be used for manufacturing two color product. Without multi shot injection machine, we could also produce colorful and beautiful products.

Insert Molding Has The Advantages As Below:

High productivity, lower the labor cost

Components are closely assembled, more stable and durable

Environment friendly, no pollution from secondary fixture

In the past 20 years, Jeward Mould gained rich experience in plastic insert molding, especially the pipe fitting and housewares areas. As long as our customers have demand, we will spend great effort to offer them moulds with best quality and cost-performance.

CASE STUDY

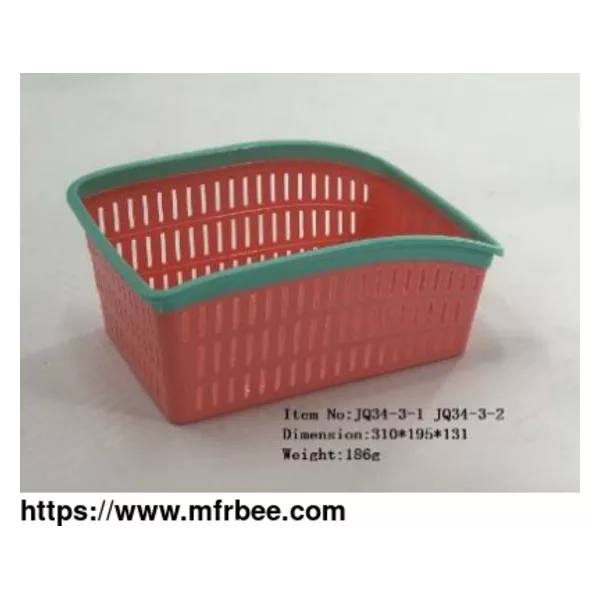

INSERT MOLDING OF DOUBLE COLOR BASIN

CHALLENGES

The double color basin produced by inserting plastic decoration component into the basin mould and through insert molding process, the product will have appearance in double colors. The plastic insert has more uncertainty of shrinkage than metal insert. Therefore, controlling the shrinkage allowance between plastic insert mould and principal mould is a key element in the insert molding process.

ENGINEERING & TECHNOLOGY

Having rich experience, Jeward design team could calculate accurately the shrinkage allowance of mould according to the target materiel. We do repeated test in mould testing period and record the best parameters. So that customers could set up the their injection machine quickly after receiving our mould.

Insert Molding

SOLUTION & RESULTS

Due to the reasonable use of shrinkage and high processing accuracy, our double colors basin has flat joint without shortage and flashing. Our mould could go into production quickly in customer’s factory by referring to our mould testing parameter, which saves lots of testing trouble.

FAQS ABOUT INSERT MOLDING

Q

How to improve the productivity of multi-cavities insert molding?

A

For multi-cavities moud, there will be insert in every cavity. Using robots to replace labor could shorten the placement time to improve the productivity.

Q

What brings the flashing issue during the insert molding process?

Q

Does the insert molding need extra equipment?
