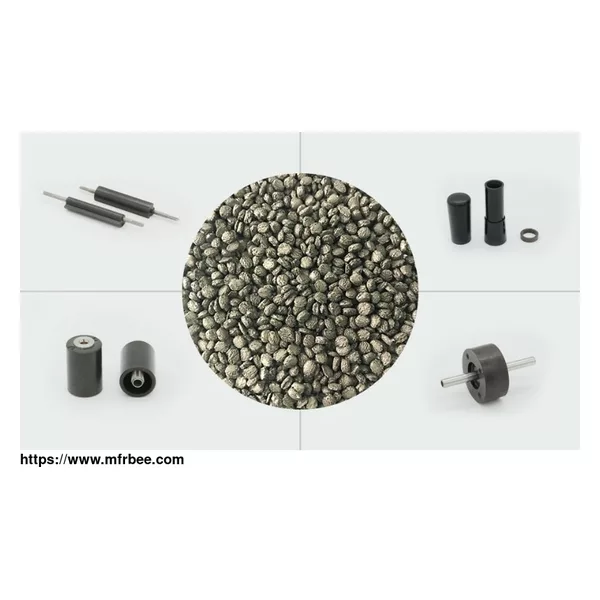

Bonded Neodymium Magnetic Compounds

Minimum Order: 1

FOB Price: USD $6.00 / Piece

Packaging: N/A

Delivery: 30 Days

Bonded Neodymium Magnetic Compounds Introductions

Bonded neodymium magnets (bonded NdFeB magnet) has high mechanical performance and no need for surface coating and other processes, which can effectively avoid the shortcomings of brittle and poor corrosion resistance of sintered NdFeB magnet.

Isotropic bonded ferrite magnets with complex shapes can be obtained through injection molding and subsequent magnetization process, there is no need to apply the magnetic field into an injection mold. Yet, it is necessary for anisotropic bonding neodymium magnets to apply the magnetic field into injection mold to magnetize magnets in a variety of patterns.

A bonded neodymium magnet can be magnetized in the axial, radial, multi-poles, or local direction, which is difficult for sintered NdFeB magnets.

Bonded ndfeb magnet properties Several times stronger magnetic property than ferrite bonded magnet contributes to miniaturization and lightweight of parts.

High dimensional precision makes it suitable for precision parts.

The bonded neodymium magnet material can be wholly, partially magnetized, or demagnetized.

Applications of Bonded Neodymium Magnetic Compounds

Motor rotor; micro-sensor; micro-motor; electronic expansion valve; etc.

Specification of Bonded Neodymium Magnetic Compounds

Grade Br HcB HcJ (BH)max neodymium magnet / NdFeB Mold density Melt Flow Rate IZOD Impact Strength Tensile Strength Flexural Strength Composition

Residual Flux Density Coercive Force Intrinsic Coercive Force Maximum Energy Product

mT Gs kA/m Oe kA/m Oe kJ/m3 MGOe g/cm3 g/10min kJ/m2 MPa MPa

NB25 353 3530 247 3098 725 9112 21.8 2.73 3.79 1000 25 53 95 NdFeB+PA12

NB30L1 381 3810 256 3211 671 8431 24.6 3.09 4.21 800 10 40 75

NB40 455 4550 300 3769 697 8760 34.7 4.36 4.52 900 14 51 90

NB50 503 5030 325 4078 647 8132 41.9 5.26 4.91 400 11 50 85

NB70 592 5920 370 4647 681 8549 56.7 7.13 5.34 860 8 45 88

NB80 647 6470 384 4829 589 7401 65.4 8.22 5.67 335 8 55 100

NC15 276 2760 195 2453 679 8531 13.6 1.71 3.52 1200 9 40 105 NdFeB+PPS

NC20 336 3360 235 2946 656 8241 19.7 2.48 3.86 1200 9 40 110

NC30 370 3700 266 3346 943 11840 24.5 3.08 4.07 1000 8 44 110

NC30L 384 3840 264 3310 680 8548 25.4 3.19 4.21 900 8 45 110

NC40H 447 4470 312 3915 899 11295 34.5 4.34 4.61 400 6 53 87

NC50 500 5000 340 4274 877 11023 42.1 5.29 5.02 200 6 48 88

NC60 533 5330 372 4672 899 11290 49.5 6.21 5.11 150 6 43 83

HNB120a 786 7860 461 5790 860 10800 101.1 12.7 4.92 500 12 48 86 HDDR +PA12

HNB140a 821 8210 501 6290 1003 12600 113 14.2 5.15 400 7 47 83

If you want to know more about the ndfeb density, please contact us.

More types of ideal magnet solutions, please visit our website.

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa,Americas,Asia
Founded Year:
Address:Block C, Building 1, NO.63, Jiuhuan Road, JiangGan District, Hangzhou
Contact:maglastic .com
