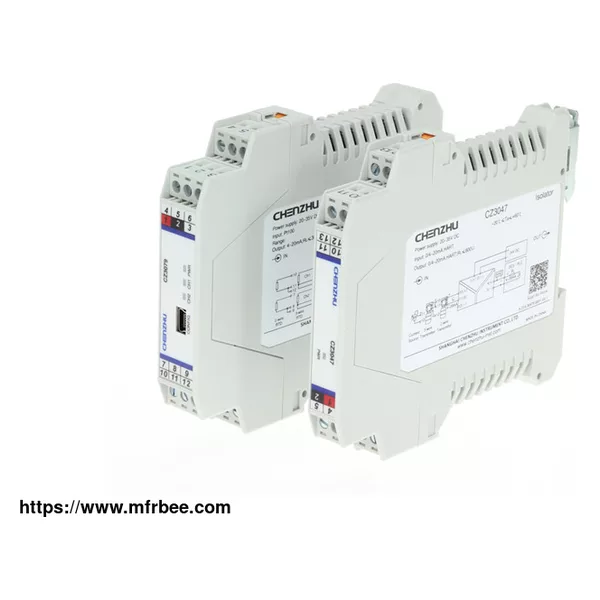

CZ3000 Temperature Converter Signal Conditioner
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- Shanghai
- FOB Price
- USD $2,000.00 / Piece
- Packaging
- Carton
- Delivery
- 7 working days
Specifications
CZ3000 Temperature Signal Conditioner
Thermal resistance type signal isolators, the two-wire or three-wire system resistance signal is converted into 0/4~20mA current signal isolation or 0/1~5V voltage signal output. It is intelligent,
can through the computer scope of heat resistance index number range and configuration.
This 5v to 24v signal converter should be supplied power independently. Input circuit, output circuit and power supply are each galvanically isolated.
Advantages of CZ3000 Temperature Converter Signal Conditioner
24V DC independent/ loop power supply
Line fault detection(LFD)
Configurable by software
Integral CJC on terminals/TC input terminals
Parameter of CZ3000 Temperature Converter Signal Conditioner
CZ3076 CZ3079
CZ3071 1/2 2/2
1/1
Input Signal Pt100，Cu100，Cu50 Pt100，Cu100，Cu50 Pt100，Cu100，Cu50
Output Current/Load Resistance 0~20mA，4~20mA / RL ≤300Ω 0~20mA，4~20mA / RL ≤300Ω 0~20mA，4~20mA / RL ≤300Ω
Output Voltage/Load Resistance 0~5V，1~5V / RL ≥20kΩ 0~5V，1~5V / RL ≥20kΩ 0~5V，1~5V / RL ≥20kΩ
Fault Current of Overrange/Underrange IH≈20.8mA/IL≈3.8mA IH≈20.8mA/IL≈3.8mA IH≈20.8mA/IL≈3.8mA
Fault Current of Line Break I≈20.8mA I≈20.8mA I≈20.8mA
Supply Voltage 20~35V DC 20~35V DC 20~35V DC
Power Reverse Protection Support Support Support
Current Consumption(Supply voltage:24V) ≤35mA ≤55mA ≤55mA
Temperature Drift 0.01%F.S./℃ 0.01%F.S./℃ 0.01%F.S./℃
Response Time (0~90%) ≤1s ≤1s ≤1s
Dielectric Strength 1500V AC;1min 1500V AC;1min 1500V AC;1min
Insulation Resistance ≥100MΩ; 500V DC ≥100MΩ; 500V DC ≥100MΩ; 500V DC
EMC Standards GB/T 18268(IEC 61326-1) GB/T 18268(IEC 61326-1) GB/T 18268(IEC 61326-1)
Ambient Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Suitable Field Apparatus 2-or 3-wire RTD 2-or 3-wire RTD 2-or 3-wire RTD
CZ3072 CZ3074 CZ3079.TC
1/1 1/2 2/2
Input Signal(Customized mV signal) T、E、J、K、N、R、S、B T、E、J、K、N、R、S、B T、E、J、K、N、R、S、B
Internal CJC Temperature Range -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
CJC Precision ±1℃ ±1℃ ±1℃
Output Current/Load Resistance 0~20mA，4~20mA / RL≤300Ω 0~20mA，4~20mA / RL≤300Ω 0~20mA，4~20mA / RL≤300Ω
Output Voltage/Load Resistance 0~5V，1~5V / RL ≥20kΩ 0~5V，1~5V / RL ≥20kΩ 0~5V，1~5V / RL ≥20kΩ
Fault Current of Overrange/Underrange IH≈20.8mA/IL ≈3.8mA IH≈20.8mA/IL ≈3.8mA IH≈20.8mA/IL ≈3.8mA
Fault Current of Line Break I≈20.8mA I≈20.8mA I≈20.8mA
Supply Voltage 20~35V DC 20~35V DC 20~35V DC
Power Reverse Protection Support Support Support
Current Consumption(Supply voltage:24V) ≤35mA ≤55mA ≤55mA
Temperature Drift 0.01%F.S./℃ 0.01%F.S./℃ 0.01%F.S./℃
Response Time (0~90%) ≤1s ≤1s ≤1s
Dielectric Strength 1500V AC;1min 1500V AC;1min 1500V AC;1min
Insulation Resistance ≥100MΩ; 500V DC ≥100MΩ; 500V DC ≥100MΩ; 500V DC
EMC Standards GB/T 18268(IEC 61326-1) GB/T 18268(IEC 61326-1) GB/T 18268(IEC 61326-1)
Ambient Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Suitable Field Apparatus TC and mV signal sensor TC and mV signal sensor TC and mV signal sensor
1/1：CZ3077 1/1：CZ3177 1/1：CZ3277
2/2：CZ3078 2/2：CZ3178 2/2：CZ3278
Input Signal Pt100，Cu100，Cu50 T、E、J、K、N、R、S、B Pt100，Cu100，Cu50
(Customized mV signal) T、E、J、K、N、R、S、B
Internal CJC Temperature Range -20~+60℃ -20~+60℃
CJC Precision ±1℃ ±1℃
Output Current 4~20mA 4~20mA 4~20mA
Load Resistance RL ≤(Ue -12)/0.021Ω RL ≤(Ue -12)/0.021Ω RL ≤(Ue -12)/0.021Ω
Fault Current of Overrange/Underrange IL ≈20.8mA/IL ≈3.8mA IL ≈20.8mA/IL ≈3.8mA IL ≈20.8mA/IL ≈3.8mA
Fault Current of Line Break I≈20.8mA I≈20.8mA I≈20.8mA
Loop Supply Voltage(Ue) 12~30V DC 12~30V DC 12~30V DC
Power Reverse Protection Support Support Support
Temperature Drift 0.01%F.S./℃ 0.01%F.S./℃ 0.01%F.S./℃
Response Time (0~90%) ≤1s ≤1s ≤1s
Dielectric Strength 1500V AC;1min 1500V AC;1min 1500V AC;1min
Insulation Resistance ≥100MΩ; 500V DC ≥100MΩ; 500V DC ≥100MΩ; 500V DC
EMC Standards GB/T 18268(IEC 61326-1) GB/T 18268(IEC 61326-1) GB/T 18268(IEC 61326-1)
Ambient Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Suitable Field Apparatus 2-or 3-wire RTD TC sensor，mV signal RTD，TC sensor
Signal conditioners are electrical devices, which are connected between the industrial field instrument and the control room. CHENZHU's signal conditioner complete in specifications.
