SMC Antenna Reflector Mould
Product Quick Detail
- Place Of Origin
- zhengjiang, China.
- FOB Price
- USD $100.00 / Piece
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 10 days - 2 months
Specifications

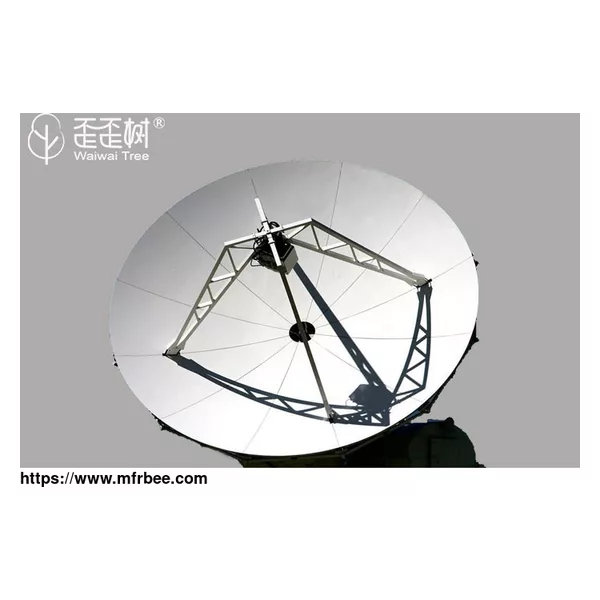

The satellite earth antenna is the important earth satellite equipment to collect the weak signal from satellite and reduce noise to the lowest level within its ability. The traditional materials
for satellite antenna are iron or aluminium. But the better properties of SMC material can boost the accuracy of satellite antenna. The good performance of SMC antenna is comparable to a metal one.
Features of SMC antenna
(1) High precision, high efficiency, and high gain.
The design of antenna smc mold takes consideration of shrinkage ratio of the material and molding shrinkage rate, so the SMC antenna reflective surface has a smaller shape from the original design
paraboloid after molding. SMC antenna comes with small reflective surface.
(2) Corrosion resistance
SMC is non-metal dielectric composite material, has good acid resistance, water resistance and corrosion resistance.
(3) long life
The service life of SMC molded antennas is generally more than 15 years; PROMLIN's prototype SMC molded antennas in 1985 are still working normally, and they have been subject to typhoons and
heavy rain every year.
(4) Strong wind resistance
The design of antenna adopts multiple longitudinal and circumferential rib structures. It can withstand a wind load of 45 m/s.
(5) Special reflective layer technology
A metal aluminum mesh is applied on the reflective surface, which can reflect electromagnetic waves and insulate the atmosphere, and plays a good protective role.
(6) Good consistency, no deformation, easy to transport and install
Membrane pressure technology adopted delivers good consistency, no deformation, and make it easy to transport and install.
SMC antenna mold specification
Product name SMC Satellite Dish Antenna Mould
Product Material PP, PC, PS, PA6, POM, PE, PU, PVC, ABS, PMMA etc
Mould cavity L+R/1+1 etc
Mould life 500, 000 times
Mould testing All of the moulds can be well tested before the shipments
Shaping Mode Pressure mold
Design of SMC antenna
Draft angle: draft angle should be enough to allow smooth demoulding without damage.
Round angle: Stress is prone to accumulate the the right angle. A round angle can not only disperse stress, but also give a aesthetic touch, and serves as protection in quenching and working.
Quality Control Procedures for SMC Antenna Mould
Inspect steel hardness and dimension
Inspect Electrodes
Inspect dimension of parts
Inspect before assembly
Inspect trial report and samples
Inspect before shipment
Custom Service for SMC Antenna
Meet your specific needs
Experts and technicians available to give professional advice on your custom needs
Optimized quality possible
Aobang provide bmc composite, bmc molding, automotive smc moulding and etc. Contact us to know more.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets,Europe,G20,Middle East,Oceania
- Founded Year:313218
- Address:No.62,zhidailang,sha village,luoshe town, deqing,huzhou city, zhengjiang, China.
- Contact:Coffee Tu
