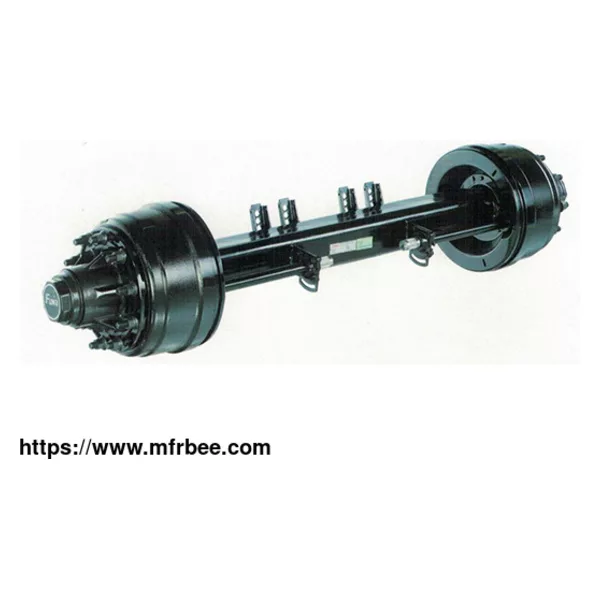

FUWA inboard drum series axle
Product Quick Detail
- FOB Price
- USD $9,000.00 / Piece
- Place Of Origin
- Foshan
- Minimum Order
- 2
- Packaging
- standard by container
- Delivery
- 30 Days
Specifications
FUWA Inboard Drum Series Axle is one of the most conventional American style design which is commonly used worldwide.
Overview
Overview of FUWA inboard drum trailer axle
Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.
Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.
Reasonable design of spindle processed by heat hardening.
High performance non-asbestos brake linings of good quality and service life.
Improved seals at camshafts for better and safer grease lubricant.
Axle beam is available with round 127mm diameter and square 150mm type.
Track length and camshaft length could be customized.
Loading capacity is available with 11.5T to 20T.
Track length and camshaft length could be customized.
Brake drum type is available with inboard type.
Optional for automatic slack adjuster and ABS system.
Advantage
Advantage of FUWA inboard drum series axle
Strictly selected raw material and parts ensure more stability and greater capacity.
Special processed spindle with induction hardened bearing journals provide superior fatigue capability.
Accurate machining process increases stability and braking performance.
Strictly selected sealing parts protect braking safety.
Complete quality control procedure including metallographical examination, pressure reversal testing, magnetic flaw detecting, etc can ensure good quality.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.
Axle Type 105 (km/h)
Max.Capacity(KG) 'S' Cam Brake
Series
ø *
Width
(mm) Track TR (mm) Spline No. Axle Beam (mm) Center Distance Of Chamber Wheel Fixing Total Length (mm) Recommended Wheel
New Model Old Model CL (mm) AC (mm) Studs (mm) P.C.D. (mm) Ø H (mm)
FP2023XE01AA F2023 11,500 S 420*180 1820 1.625'-37 ○127 543 370 10*M22*1.5 ISO 335 281 ~2183 ≥7.50V-20
FP2024XE01AA F2024 11,500 S 420*180 1820 1.625'-37 ○127 543 370 10*M20*1.5 JAP 285.75 221 ~2183 &≥7.50V-20
FP2026XE01AA F2026 11,500 S 420*180 1820 1.625'-37 ○127 543 370 10*M22*1.5 ISO 285.75 221 ~2183 ≥7.50V-20
FP2023XE02AA F2023/BII 11,500 S 420*220 1820 1.625'-37 ○127 543 326 10*M22*1.5 ISO 335 281 ~2183 ≥7.50V-20
FP2423XE01AA F2423 13,000 S 420*180 1840 1.625'-37 □150 543 390 10*M22*1.5 ISO 335 281 ~2203 ≥7.50V-20
FP2424XE01AA F2424 13,000 S 420*180 1840 1.625'-37 □150 543 390 10*M20*1.5 JAP 285.75 221 ~2203 ≥7.50V-20
FP2426XE01AA F2426 13,000 S 420*180 1840 1.625'-37 □150 543 390 10*M22*1.5 ISO 285.75 221 ~2203 ≥7.50V-20
FP2423XE02AA F2426/BII 13,000 S 420*220 1840 1.625'-37 □150 543 346 10*M22*1.5 ISO 335 281 ~2203 ≥7.50V-20
FB2062XE01AA F2023AD 15,000 S 420*180 1850 1.625'-37 ○127 543 396 10*M22*1.5 ISO 335 281 ~2200 ≥8.00V-20
FB2462XE01AA F2423AD 15,000 S 420*180 1850 1.625'-37 □150 543 396 10*M22*1.5 ISO 335 281 ~2200 ≥8.00V-20
FB2062XE02AA F2062BII 16,000 S 420*220 1850 1.625'-37 ○127 543 354 10*M22*1.5 ISO 335 281 ~2200 ≥8.00V-20
FB2462XE02AA F2462BII 16,000 S 420*220 1850 1.625'-37 □150 543 354 10*M22*1.5 ISO 335 281 ~2200 ≥8.00V-20
FB2182XE02AA F2082BII 20,000 S 420*220 1850 1.625'-37 □150 543 354 10*M24*1.5 ISO 335 281 ~2252 ≥8.50V-20
FB2482XE02AA F2482BII 20,000 S 420*220 1850 1.625'-37 □150 543 354 10*M24*1.5 ISO 335 281 ~2252 ≥8.50V-20
Note: Axle Head: FP Inner: HM518445/10 Outer: HM518445/10
Axle Head: FN Inner: HM218248/10 Outer: HM212049/10
Axle Head: FB Inner: HM220149/10 Outer: HM518445/10
Axle Head: FD Inner: 32222 Outer: HM518445/10
Application
Application of FUWA inboard drum series axle
FUWA Inboard Drum Series Axle is applicable on any Ultraton Semi Trailer.
