Galvanized Steel Sheet

Description of Galvanized Rolled Steel

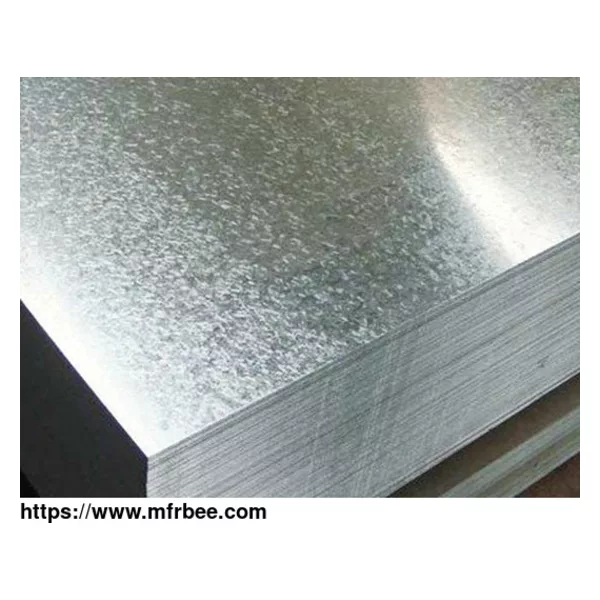

Hot dipped galvanized steel sheet is a carbon steel sheet coated with zinc on both sides through a continuous hot-dip process. When the heated steel strip is in contact with the molten zinc, the coating is firmly adhered to the steel by the iron-zinc alloy adhesive layer formed by the diffusion process. One of the disadvantages of galvanizing is that if the zinc coating is scraped off the steel, the steel will lose its protection and may fail.

Specification of Galvanized Steel Sheets

Product name Galvanized Steel Sheets

Zinc Coating 20-120g/m2

Thickness 0.14-1.0mm

Width 600-1250 mm

Length custom

Thickness Tolerance +0/-0.001

Width Tolerance +/-0.06

Length Tolerance +/-0.06

Surface Structure Mini/Big Spangle

Surface Treatment Anti-Finger printing, Chromated, oiled/ non-oiled

Finish Galvanized

Surface Finish of Galvanized Steel Sheet

Surface Structure Mini Spangle Big Spangle

Weight of zinc coating Zinc > 20g/sm Zinc > 30g/sm

Surface Finish

Galvanized Steel Sheet Production Process:

1. Uncoiler

2. Welder

3. Entry Looper

4. Pre-treatment

5. Annealing Furnace

6. Zinc Pot

7. Cooling Tower

8. Water Quench Tank

9. Skin Pass

10. Tension Leveler

11. Passivation Coater

12. Exit Looper

13. Recoiler

Quality Control of Galvanized Steel Sheet

Use bending machine, pencil hardness tester, gloss meter, meteorological tools, row lattice unit, micrometer tools, thickness gauge to control the quality of galvanized steel coil.

As a professional galvanized steel strip factory, Huaro Steel provides cold rolled galvanized steel strip, cold rolled galvanized steel, hot rolled steel for sale, hot rolled steel. Want to buy hot rolled steel? Contact us.
