As one of magnetic assembly suppliers, we have different types of magnetic welding holder for sale at Meank China welding magnet company. Magnetic welding angle holder are magnetic tools which
often used for the welding operation. Such magnetic tool has another name of magnetic welding clamps and magnetic welding support, also shorted as welding magnets. The workpieces are held by the
strong magnetic field generated by the permanent magnet. The magnetic welding holder can fix the ferromagnetic workpiece to be welded through the action of the magnet, and it does not need to hold
the workpiece with hand so that the welding operation can be carried out safely. The magnetic welding support is an ideal auxiliary tool for welding because it is fast and accurate.

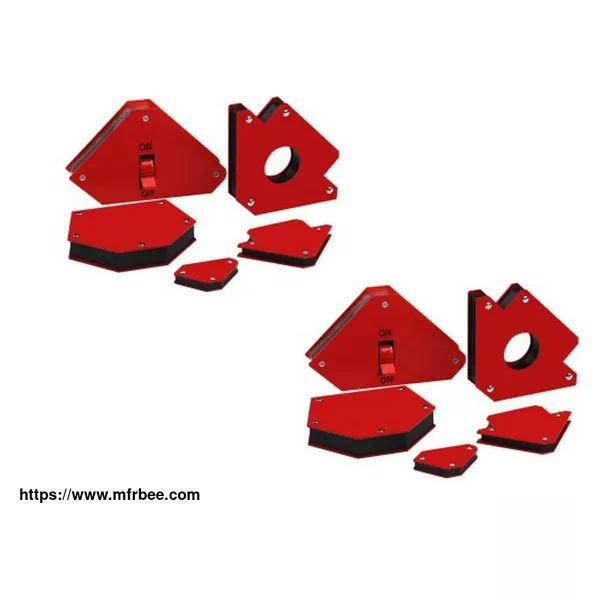

Common Types Of Magnetic Welding Holder:
we can supply these types of magnetic holders for welding
1, Triangle magnetic welding clamps&holder
2, Adjustable magnetic welding holder&support, the workpieces can be fixed to any angle freely by using adjustable magnetic welding support, which is very flexible.
3, Polygonal magnetic welding holder which can satisfy multi-angle clamping.
4, Triangle welding magnet with switch, the magnetic field arrangement of the permanent magnet is adjusted by rotating the switch to achieve the purpose of holding and releasing objects
Specification Of Triangle Magnetic Welding Clamps&holder:
Model Length(mm) Width(mm) Thickness(mm) Holding Force(kg) Weight(kg)
Triangle--S 120 83 14 12kg 0.3kg
Triangle-M 155 102 16 22kg 0.6kg
Triangle-L 189 122 25 35kg 1.1kg
Triangle-XL 189 122 25 50kg 1.6kg
Specification Of Polygonal Magnetic Welding Holder:
Model Length(mm) Width(mm) Thickness(mm) Holding Force（kg） Weight(kg)
Polygonal-S 95 63 13 12kg 0.25kg
Polygonal-M 115 90 16 25kg 0.52kg
Polygonal-L 155 110 26 35kg 1.1kg
Specification Of Adjustable Magnetic Welding Holder&support:
Model Length(mm) Width(mm) Thickness(mm) Holding Force(kg) Weight(kg)
Adjustable 85 65 24 22kg 0.55kg
Characteristics Of The Magnetic Holder For Welding:
The magnetic force on the side is particularly strong, and the plane is almost non-magnetic
Metal anti-collision shell, excellent drop resistance
Red spray process, welding operation more eye-catching
Resin edge sealing, effectively protecting the internal strong magnets
The two metal panels are fixed by mechanical rivets so that the welding angle is fixed
Advantages of welding magnets: above types of welding magnets suitable for multi-angle positioning welding and customized angle accurate welding, which improves the accuracy of welding, release
hands, and enhances the safety
Customized welding magnet: in addition to the above welding magnets, we can also customize a variety of magnetic welding holders(welding magnets) according to the customer's use or requirement.
